Specifications

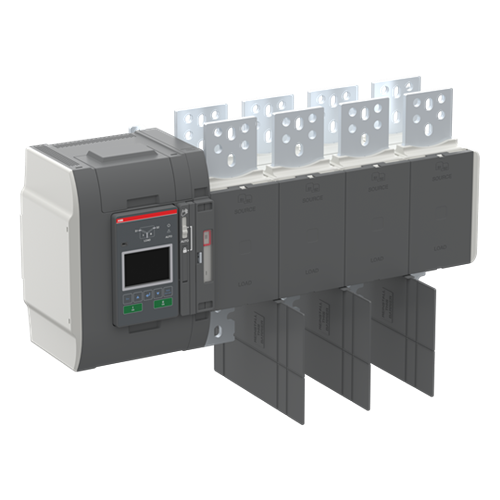

Product Type	Automatic Transfer Switch
Brand	ABB
Air Thermal Current	1600 A
Degree of Protection	IP20
Fourth Pole Type	Late-break & Early-make
Height	359 mm
Length	212 mm
Mounting Type	Front Mount 4-hole
Number of Poles	4
Rated Current	1600 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	12 kV
Rated Voltage	200-480 VAC
Standards and Approvals	UL1008 / IEC60947-6-1
Terminal Type	Bolt
Transition Type	Open
Weight	36.61 kg
Width	712 mm
