Specifications

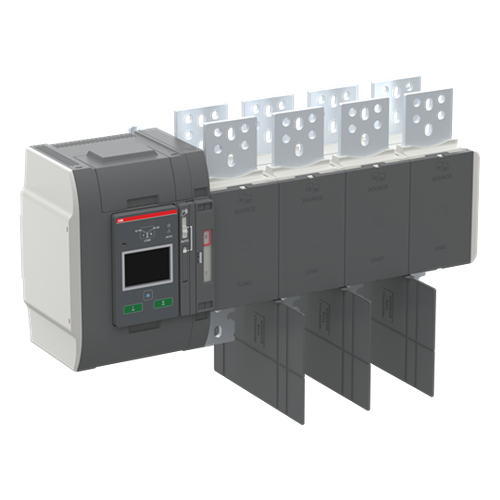

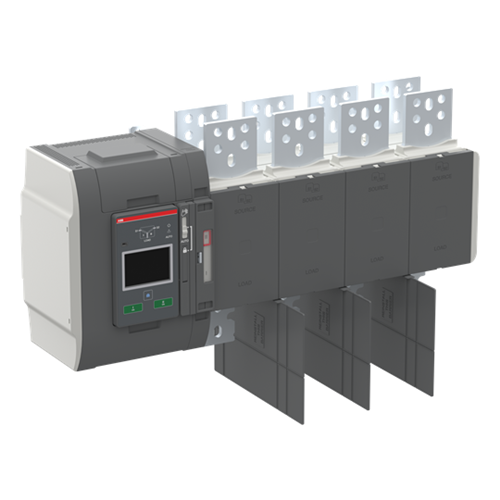

Product Type	Automatic transfer switch
Brand	ABB
Series	TruONE
Application	Transformer - Transformer, Transformer - Generator
Location of Connection	Supplies on Top-Load on Bottom
Pole Type	Switched-Late-Break, Early-Make
Position of Line Terminals	Supplies on Top - Load on Bottom
Rated Current (In)	1200 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	200 to 480 V AC
Rated Short Time Withstand Current (Icw)	65000 A
Power Loss	69 W
Rated Current	1600 A
Rated Frequency	50/60 Hz
Rated Voltage	200-480 VAC
Rated Withstand Current	65 kA
Special Functions	Open style
Transition Type	Open
Terminal Type	Bolt
No. of Poles	4
Controller Type	Level 4 (Touch)
Rated Thermal Current (Ith)	1600 A
Handle Type	Direct Mounted
Mechanical Endurance	3050 cycles
Mounting Type	Front Mount 4-hole
Padlock Locking	Padlockable to prevent automatic and manual operation
Depth	212 mm
Height	359 mm
Length	212 mm
Weight	37080 g
Width	712 mm
Rated Surrounding Temperature Without Derating	40 degC
Operating Temperature	-25 to 70 degC
IP Rating	IP20
Standards and Approvals	UL 1008, IEC 60947-6-1
