Specifications

Product Type	Automatic Transfer Switch
Brand	ABB
Series	TruONE
Application	Utilities, manufacturing, water and wastewater
Max. Rated Operation AC Voltage (Ue)	480 V
Pole Type	Late-break & Early-make
Position of Line Terminals	Supplies on Top - Load on Bottom
Rated Current (In)	260 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Rated Operating Voltage	Main Circuit 200...480 V AC
Rated Operation Power at AC-31b (Ie)	(200 … 415 V AC) 400 A
Rated Operation Power at AC-32b (Ie)	(200 … 415 V AC) 400 A
Rated Short Time Withstand Current (Icw)	for 0.3 s 25 kiloampere rms
Power Loss	at Rated Operating Conditions per Pole 8 W Total 24 W
Rated Current	400 A
Rated Frequency	Main Circuit 50-60 Hz
Special Functions	Open style
Transition Type	Open
No. of Poles	4
Rated Operation Power at AC-3b (Ie)	(200 … 415 V AC) 400 A
Colour	Grey
Material	Mild Steel
Depth	183 mm
Height	305 mm
Weight	17.13 kg
Width	455 mm
Operating Temperature	-25 to +70 °C
IP Rating	Front IP20
Standards and Approvals	UL1008 / IEC60947-6-1

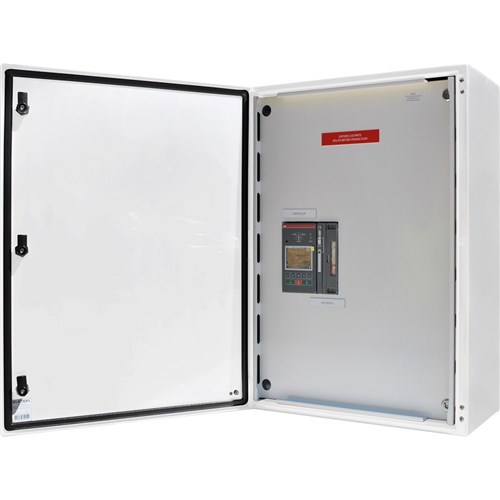

ABB OXA260U3O3QTEG Automatic Transfer Switch 3P+N-P 400A Mild Steel IP65
