Specifications

Number of Poles	3

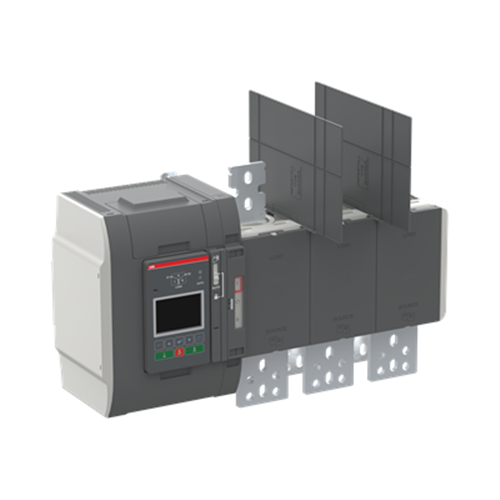

Product Type	Automatic Transfer Switch
Brand	ABB
Location of Connection	Supplies on Bottom-Load on Top
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V
Power Loss	49 W
Rated Current	1600 A
Rated Frequency	50/60 Hz
Rated Voltage	200-480 VAC
Rated Withstand Current	65 kA
Special Functions	Open Style
Transition Type	Delayed
Terminal Type	Bolt
Controller Type	Level 3 (LCD)
Rated Thermal Current (Ith)	1600 A
Handle Type	Direct Mounted
Mounting Type	Front Mount 4-hole
Height	359 mm
Length	212 mm
Weight	31.14 kg
Width	597 mm
Pollution Degree	3
IP Rating	IP20
Standards and Approvals	IEC60947-6-1
