Specifications

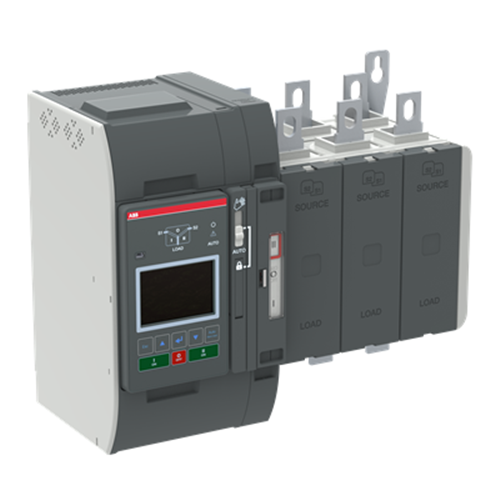

Product Type	Automatic Transfer Switch
Brand	ABB
Air Thermal Current	400 A
Controller Type	Level 3 (LCD)
Degree of Pollution	IP3
Degree of Protection	IP20
Handle Type	Direct Mounted
Height	305 mm
Length	183 mm
Line Terminals Position	Supplies on Top-Load on Bottom
Mounting Type	Front Mount 4-hole
Number of Poles	3
Power Loss	20.3 W
Rated Current	400 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 V
Rated Voltage	200-480 VAC
Rated Withstand Current	25 kA
Special Functions	Open Style
Standards and Approvals	IEC60947-6-1
Terminal Type	Bolt
Transition Type	Delayed
Weight	15.45 kg
Width	390 mm
