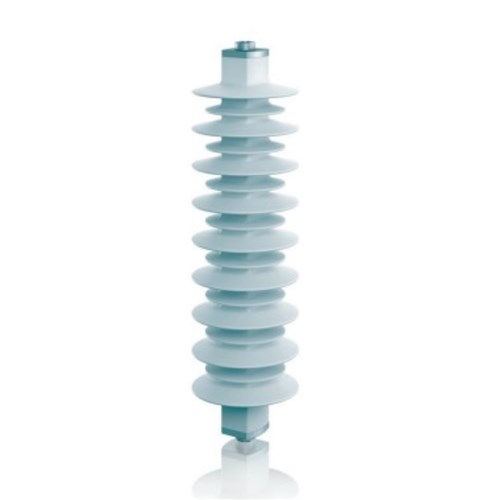

ABB POLIM-D-24-10 Surge Arrester W/Metal Oxide Resistor 24kV

Product Code: POLIM-D-24-10

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type Surge arrester
Brand Hitachi Energy
Series POLIM-D
Application MV distribution transformers, Pole mounted MV transformers, MV cable and cable terminations, Reactor and PLC line traps, Further MV distribution equipment
Max. Continuous Operating Voltage (AC/DC) 24 kV AC
Rated Voltage 24 kV
Short Circuit Current Rating 20 kA
Nominal Discharge Current Inom (8/20µs) 10 kA
Height 429 mm
Weight 3.5 kg
Operating Temperature -60°C to 55°C

Documents

IPD Product Catalogue V17
