Specifications

Product Type	Surge arrester
Brand	Hitachi Energy
Series	POLIM-D
Application	MV distribution transformers, Pole mounted MV transformers, MV cable and cable terminations, Reactor and PLC line traps, Further MV distribution equipment
Lightning Impulse Current Iimp (10/350µs)	91 kA
Max. Continuous Operating Voltage (AC/DC)	26 kV AC
Rated Current	10 kA
Rated Short Circuit Current	20 kA
Rated Voltage	26 kV
Short Circuit Current Rating	20 kA
Nominal Discharge Current Inom (8/20µs)	10 kA
Colour	Grey
Material	Moulded Silicone
Tightening Torque	50 N-m
Operating Temperature	-60°C to 55°C
Standards and Approvals	IEC 60099-4

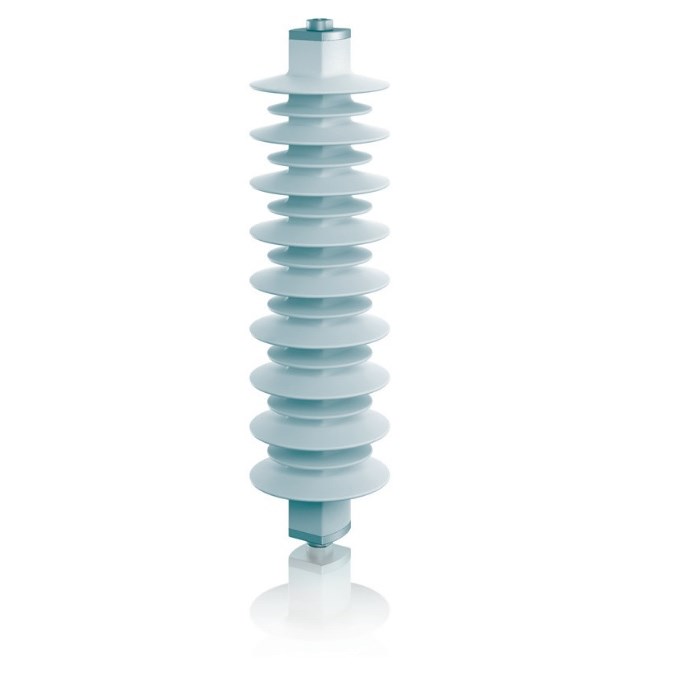

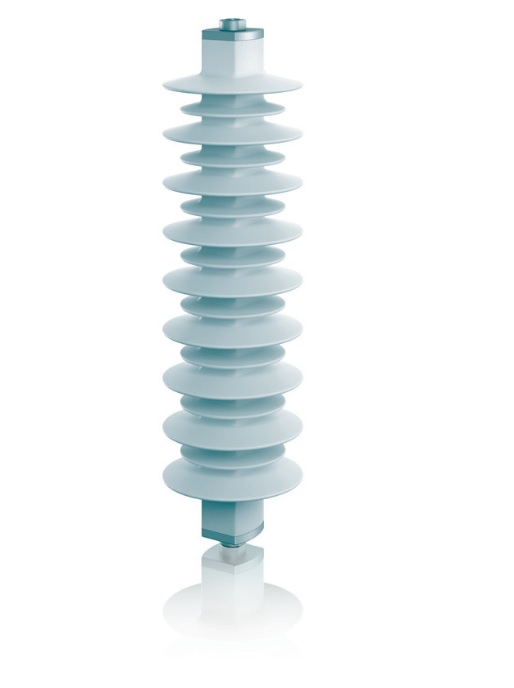

ABB POLIM-D-26-11 Surge Arrester 91kA 10kA 26kV Moulded Silicone Grey
