Specifications

Product Type	Surge arrester
Brand	Hitachi Energy
Series	POLIM-S N
Application	MV terminal of power transformers, star point, Arc furnace transformers, Traction systems - fixed installations, Rolling stock and high speed trains, Capacitors and capacitor banks, high capacity, MV Motors
Lightning Impulse Current Iimp (10/350µs)	129 kA
Max. Continuous Operating Voltage (AC/DC)	43 kV AC
Rated Current	10 kA
Rated Short Circuit Current	50 kA
Rated Voltage	43 kV
Short Circuit Current Rating	50 kA
Nominal Discharge Current Inom (8/20µs)	10 kA
Colour	Grey
Material	Moulded Silicone
Tightening Torque	100 N-m
Height	640 mm
Operating Temperature	-60°C to 55°C
Standards and Approvals	IEC 60099-4

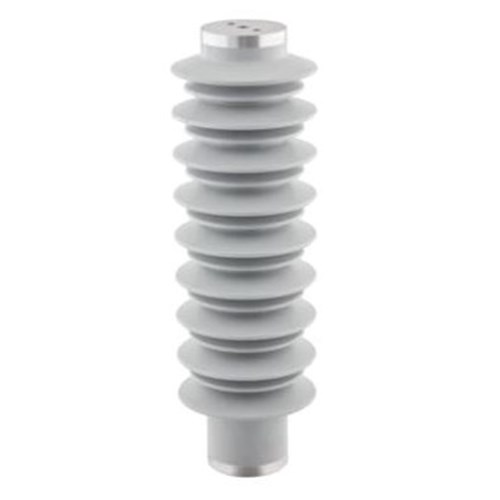

ABB POLIM-S-43 Surge Arrester 129kA 10kA 43kV Moulded Silicone Grey
