Specifications

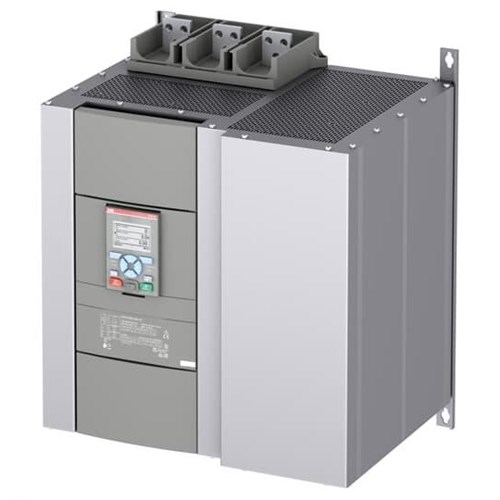

Product Type	Soft Starters
Brand	ABB
Built-in Bypass	Yes
No. of N/C Contacts	0
No. of N/O Contacts	3
No. of Poles (NO/NC)	3NO/0NC
Rated Control Supply Voltage (Us)	100 ... 250 V AC
Rated Current Ie - Heavy Duty	840 A
Rated Current Ie - Normal Duty	1050 A
Rated Operational Voltage (Ue)	208 ... 600 V AC
Rated Power at 400V (Pe) - Heavy Duty	450 kW
Rated Power at 400V (Pe) - Normal Duty	560 kW
Built-in Communication	Yes
Control Features	Soft start/stop with voltage or torque ramp, current limit, kick start, motor heating, pump cleaning, braking, diagnostics, sequence start, emergency/fire pump mode, built-in electronic overload.
Rated Frequency	50/60 Hz
Depth	367 mm
Height	515 mm
Weight	62.3 kg
Width	435 mm
IP Rating	IP00
Ambient Temperature	-25°C to +60°C
Standards and Approvals	IEC 60529, IEC 60947-1, EN 60529; CE; DNV; UNSPSC: 39121521
