Specifications

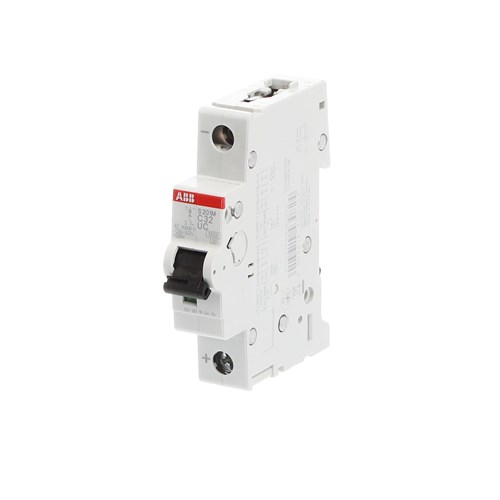

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200MUC
Collection	S200
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	69 mm
Height	85 mm
Mounting Type	DIN Rail
Number of Poles	1
Power Loss	3.18 W
Rated Current	32 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Rated Short Circuit Current	10 kA
Standards and Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Tightening Torque	2.8 N-m
Trip Curve	C Curve
Width	17.5 mm
