Specifications

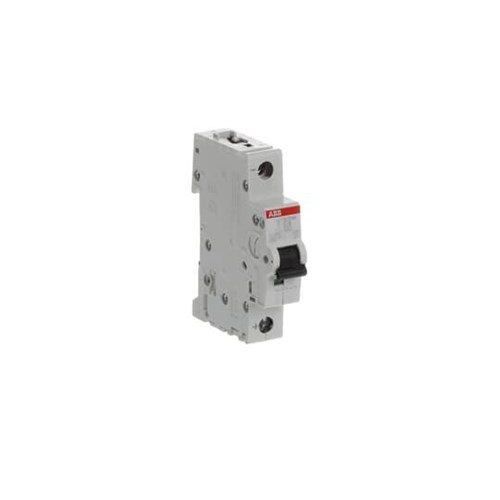

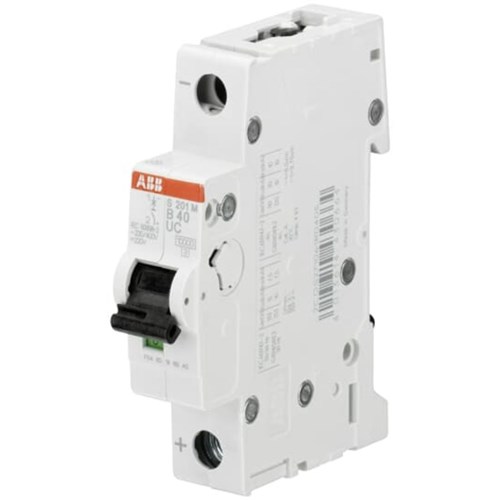

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200MUC
Application	Commercial and Industrial
Rated Cross-Section	10 sq-mm Top, 10 sq-mm Bottom
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	484 V
Power Loss	1.54 W
Rated Current	8 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	10 kA
Rated Voltage	230/240 VAC
Trip Curve	C
Cable Cross Section	35 sq-mm Top, 35 sq-mm Bottom
Housing Colour	RAL 7035 Grey
Housing Material	Insulation group I, RAL 7035
Mounting Type	DIN Rail
Depth	69 mm
Height	85 mm
Width	17.5 mm
Pole Width	17.5 mm
Pollution Degree	2
IP Rating	IP20
Standards and Approvals	AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
