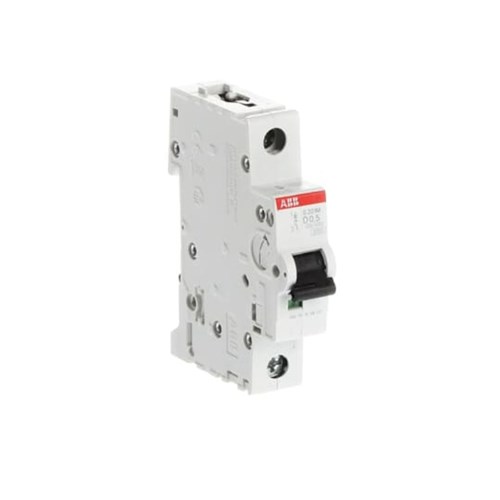

<p>The S200M MCB is a robust and reliable solution for commercial and industrial electrical systems. This miniature circuit breaker (MCB) is designed to ensure optimal performance and safety in various applications. With a rated current of 0.5 A, it provides precise protection for circuits against overloads and short circuits.</p><p>This MCB operates efficiently within a voltage range of 230/400 VAC, making it versatile for different power systems. It boasts an impressive breaking capacity of 15 kA at 230 VAC, ensuring that it can handle significant fault conditions without compromising safety or functionality.</p><p>Constructed with durability in mind, the S200M features a high-rated impulse withstand voltage of 4 kV and insulation voltage of 440 V, which enhances its resilience against electrical surges. The device also complies with key standards such as AS/NZS 60898-1, AS/NZS 60947-2, and UL 1077, guaranteeing adherence to stringent safety regulations.</p><p>The MCB&#39;s physical design includes a single pole with dimensions measuring 17.5 mm in width, 88 mm in height, and 69 mm in depth. Its compact size facilitates easy installation on DIN rails while maintaining space efficiency within control panels.</p><p>For ease of use during installation or maintenance, the terminal type employs screw clamps that accommodate cable cross sections up to 35 sq-mm both top and bottom. The recommended tightening torque is set at 2.8 N-m to ensure secure connections.</p><p>With an IP20 degree of protection rating and an ambient temperature operational range from -25 to +55 degrees Celsius (and storage capability from -40 to +70 degrees Celsius), this MCB is well-suited for diverse environmental conditions found across Australia.</p><p>Engineered for longevity, the S200M offers an electrical durability rated at up to 20,000 cycles—providing assurance that it will endure over time under regular use conditions typical in industrial settings.</p><p>The product&#39;s housing comes in RAL7035 grey color which blends seamlessly into most panel designs while offering additional aesthetic appeal alongside functional benefits like pollution degree IP3 compliance—ensuring reduced ingress from dust particles or other contaminants commonly encountered onsite environments where equipment may be exposed more frequently than desired otherwise might occur elsewhere outside controlled indoor areas alone potentially affecting overall lifespan if not properly accounted beforehand accordingly too perhaps instead ideally whenever possible actually even better still ultimately altogether!</p><p>In summary: whether you&#39;re upgrading existing infrastructure expanding new installations entirely fresh builds alike rest assured knowing choose wisely selecting something proven capable delivering consistently reliable results every day long term basis thanks careful thoughtful engineering behind each component part integrated together harmoniously achieving maximum effectiveness throughout entire operational lifecycle indeed!</p>
