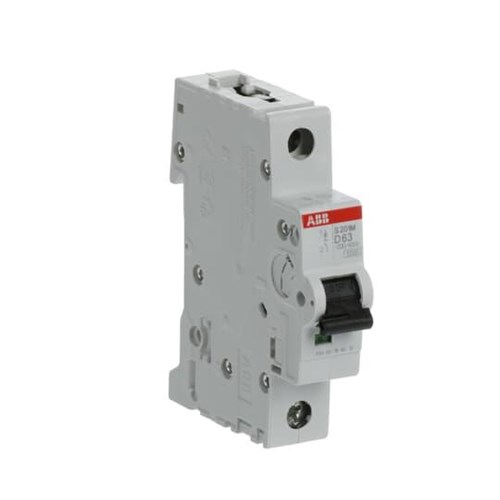

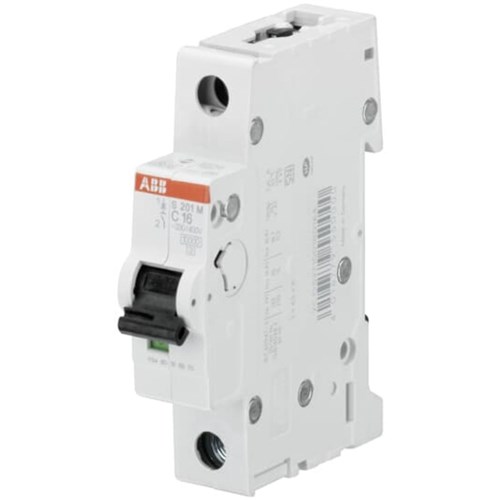

ABB S201MD63 Miniature Circuit Breaker 10 kA at 230VAC 1-P 63A 230/400VAC D-Curve

Product Code: S201MD63

  • Rated current of 63 A for reliable protection
  • Breaking capacity of 10kA at 230 VAC
  • Compact size: 17.5 mm width, ideal for tight spaces
  • Complies with AS/NZS and UL standards
  • Suitable for commercial and industrial use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Series S200M
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Application Commercial and Industrial
Bulbar Cross Section 10 sq-mm Top, 10 sq-mm Bottom
Cable Cross Section 35 sq-mm Top, 35 sq-mm Bottom
Collection S200M
Curve Type D
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Electrical Durability 10000 Cycles
Height 88 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group II, RAL 7035
Impulse Voltage 4 kV
Mounting Type DIN Rail
Number of Poles 1
Pole Width 17.5 mm
Power Loss 4.8 W
Rated Current 63 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Short Circuit Current 10 kA
Rated Voltage 230/400 VAC
Standards and Approvals AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Trip Curve D Curve
Width 17.5 mm

Description

<p>The S200M series MCB is a robust solution for commercial and industrial electrical systems, offering reliable protection with its advanced features. Designed to handle demanding environments, this miniature circuit breaker ensures safety and efficiency in your electrical installations.</p><p>With a rated current of 63 A, the S200M MCB is engineered to manage substantial electrical loads effectively. It operates efficiently at a rated voltage of 230/400 VAC and supports both 50 Hz and 60 Hz frequencies, providing flexibility for various applications. The breaker’s impressive breaking capacity of 15 kA at 230 VAC ensures it can safely interrupt high fault currents, minimizing potential damage to connected equipment.</p><p>The MCB&amp;#39;s construction includes a single pole design with a compact width of 17.5 mm, making it suitable for DIN rail mounting where space is limited. Its dimensions—88 mm in height and 69 mm in depth—allow for easy integration into existing panels or new installations.</p><p>Safety is paramount with the S200M series; it boasts an IP20 degree of protection against solid objects larger than 12 mm. This level of protection makes it ideal for indoor use within enclosed panels. The screw clamp terminal type ensures secure connections with a tightening torque specification of 2.8 N-m, accommodating cable cross sections up to 35 sq-mm on both top and bottom terminals.</p><p>This MCB complies with key standards such as AS/NZS 60898-1, AS/NZS 60947-2, and UL 1077, affirming its reliability and adherence to international safety norms. Its electrical durability rating extends up to an impressive 10,000 cycles, promising long-term performance even under frequent operation conditions.</p><p>Designed for diverse environmental conditions, the S200M operates efficiently within an ambient temperature range from -25&amp;#176;C to +55&amp;#176;C during operation and can be stored between -40&amp;#176;C to +70&amp;#176;C without compromising functionality.</p><p>The curve type D characteristic provides delayed tripping response suitable for circuits with high inrush currents typically found in motor applications or transformers—ensuring that nuisance tripping is minimized while maintaining optimal protection levels.</p><p>In terms of aesthetics and compatibility with existing equipment setups, the housing color matches RAL7035 grey—a neutral tone that blends seamlessly into most industrial settings.</p><p>Overall, the S200M series offers dependable performance tailored specifically for commercial and industrial environments requiring robust circuit protection solutions that adhere strictly to recognized standards while ensuring operational efficiency across varying conditions.</p>
