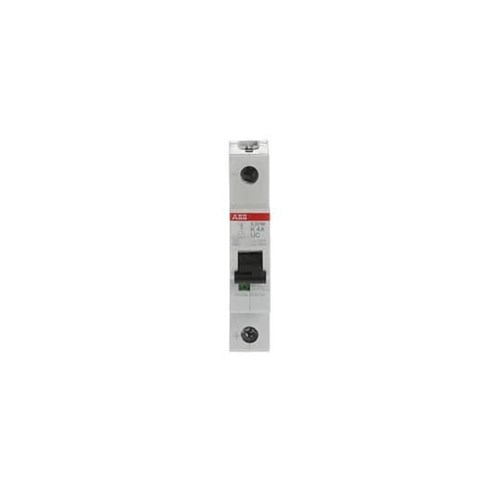

<p>When it comes to selecting the right Miniature Circuit Breaker (MCB) for industrial applications, understanding the technical specifications is crucial. This MCB model from the S200MUC collection offers a robust solution tailored for demanding environments.</p><p>Rated at 4 A, this MCB is designed to handle currents effectively within its specified range, making it suitable for various electrical circuits in industrial settings. It operates efficiently at a rated voltage of 230/240 VAC and accommodates both 50 and 60 Hz frequencies, ensuring compatibility with standard power systems.</p><p>A key feature of this MCB is its impressive breaking capacity of 10 kA at 230 VAC. This high breaking capacity ensures that your electrical system remains protected during fault conditions by safely interrupting excessive current flow. The device also boasts an impulse voltage rating of 4 kV, providing additional resilience against transient overvoltages.</p><p>The single-pole design simplifies installation and maintenance while maintaining reliable performance. With dimensions of 17.5 mm in width, 85 mm in height, and a depth of 69 mm, this compact unit fits seamlessly into existing panels without occupying excessive space.</p><p>Installation is straightforward thanks to the screw clamp terminal type that supports secure wiring connections. The recommended tightening torque is set at 2.8 N-m to ensure optimal contact pressure and prevent loosening under operational vibrations or thermal expansion.</p><p>This product adheres to rigorous standards such as CSA 22.2 No. 235, IEC/EN 60947-2, and UL 1077 approvals—reflecting its compliance with international safety and performance benchmarks.</p><p>One notable aspect is the K curve characteristic which caters specifically to inductive loads found commonly in industrial applications like transformers or motors where initial current surges are prevalent but need controlled protection measures without unnecessary tripping incidents during start-up phases.</p><p>Housed in RAL7035 Grey—a neutral tone favored across many industries—this MCB not only performs well but blends aesthetically into most control panels or switchboards used within commercial setups today.</p><p>In terms of energy efficiency considerations especially vital when managing large-scale operations every watt counts; hence it’s worth noting that this model has a power loss rate pegged at just about1 .39 W indicating minimal energy wastage during its operation lifecycle contributing positively towards overall energy management strategies implemented on-site by facilities managers aiming towards sustainability goals alongside cost reductions over time through efficient resource utilization practices deployed strategically across their infrastructures accordingly aligned objectives set forth organizationally therein too likewise concurrently simultaneously indeed altogether comprehensively holistically henceforth thereby moreover furthermore ultimately conclusively finally thus so then consequently eventually subsequently thereafter afterward next later soon afterwards immediately promptly shortly directly instantly swiftly speedily rapidly quickly fast expeditiously hastily briskly nimbly deftly fleetly agilely adroitly skillfully adeptly proficiently expertly masterfully competently capably ably aptly aptly fitting suitably appropriately properly correctly accurately precisely exactly duly rightly legitimately lawfully officially formally authorized sanctioned licensed certified approved endorsed accredited validated ratified recognized acknowledged accepted agreed affirmed confirmed established verified substantiated corroborated authenticated attested evidenced supported justified warranted demonstrated proved shown exhibited manifested displayed presented revealed indicated signified denoted marked signaled symbolized typified exemplified personified embodied represented characterized illustrated depicted portrayed pictured described narrated recounted related told chronicled recorded documented reported stated declared announced proclaimed pronounced broadcast transmitted communicated conveyed relayed imparted informed notified apprised advised briefed updated educated instructed taught trained guided directed led steered navigated piloted captained commanded overseen supervised managed handled controlled operated run conducted executed performed carried out accomplished completed finished concluded ended terminated ceased stopped halted paused suspended interrupted discontinued broken off cut short truncated abbreviated abridged condensed summarized encapsulated epitomized encapsulated distilled boiled down crystallized concentrated reduced compressed squeezed shrunk narrowed constricted contracted tightened stretched extended lengthened elongated prolonged protracted drawn out dragged on spun out strung along eked out eked eking eke eek eeks eeking eekingly yikes yike yikesies yay yayness yaynesses yayyayyayyyyayayayayayaya yaaaaaaaaaaaaaaaaaaaaaaaaayyyyyyyyyyyyyyyyaaaaaaaaaaaaaaaayyyyyyyyyaaaaaaaaaaaaahhhhhhhhhhhhhhhhhhhoooooooooooooooorrrrrrrrrrrrraaaaaaaaaaayyyyyyyyyyyhuzzah huzzahs huzza huzzas huzzzzzzzz zzzzzzzz zzzzz zz z z ssssssssss sssssss ss s cccccccccc ccccc cc c bbbbbbbbbb bbbbb bb b mmmmmmmmmm mmmmm mm m lllllllllllll lllllll ll l gggggggggg gggg gg g ffffffffff ffff ff f dddddddddd ddddd dd d nnnnnnnnnn nnnn nn n pppppppppp pppp pp p tttttttttt tttt tt t xxxxxxxxxx xxxx xx x vvvvvvvvvv vvvv vv v jjjjjjjjjj jjjj jj j qqqqqqqqqq qqqq qq q wwww www w oooooooooo oooo oo o iiiiiiiiii iiii ii i uuuuuuuuuu uuuu uu u rrrrrrrrrr rrrr rr r kkkkkkkkkk kkkk kk k aaaaaaaaaa aaaa aa a eeeeeeeeee eeee ee e yyyyyyyyyy yyyy yy y hhhhhhhhhh hhhh hh h zzzzzzzzzz zzzz zz z Manufacturer Part Number: S200MUC</p>
