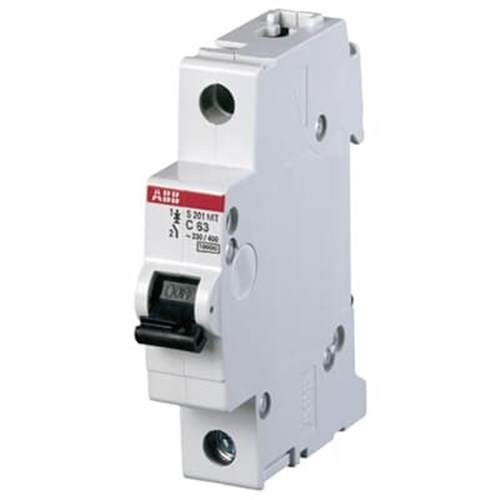

ABB S201MT-C63 Miniature Circuit Breaker 10 kA 1-P 63A 230/400VAC C-Curve

<p>This robust circuit breaker is designed to meet the demanding requirements of industrial and commercial applications. With a rated current of 63 A, it efficiently manages electrical loads, ensuring reliable operation in various environments. The device features a rated voltage of 230/400 VAC and supports both single-phase and three-phase systems, making it versatile for different installations.</p><p>The breaker boasts an impressive breaking capacity of 20 kA, providing substantial protection against short circuits. Its rated impulse withstand voltage is 4 kV, enhancing its resilience to electrical surges. Additionally, with a rated insulation voltage of 440 V and compliance with standards such as IEC/EN 60898-1 and IEC/EN 60947-2, this product guarantees safety and performance.</p><p>Engineered for durability, the circuit breaker offers electrical durability up to 10,000 cycles. It operates effectively across a wide ambient temperature range from -25&amp;#176;C to +55&amp;#176;C and can be stored safely between -40&amp;#176;C and +70&amp;#176;C. The degree of protection varies between IP20/IP40 depending on installation conditions.</p><p>Installation is straightforward with its DIN rail mounting type. The compact dimensions—17.5 mm width, 88 mm height, and 69 mm depth—allow for efficient use of space within control panels or distribution boards. The screw clamp terminal type ensures secure connections with a tightening torque requirement of 2.8 N-m.</p><p>The circuit breaker&amp;#39;s design includes a C curve type characteristic suitable for protecting against overloads in circuits with moderate inductive loads like motors or transformers. It also meets UL1077 approval standards for supplementary protectors.</p><p>Power loss during operation is minimal at just 4.8 W which contributes to energy efficiency in your system setup while maintaining operational integrity over time thanks to its short circuit capacity rating at 6 kA.</p><p>Lastly the housing color RAL7035 grey fits seamlessly into modern industrial aesthetics blending functionality with design practicality without compromising performance even under challenging conditions marked by degree pollution level IP3 compatibility ensuring robustness where needed most especially within harsh environments requiring consistent dependability day after day cycle after cycle.</p>
