Specifications

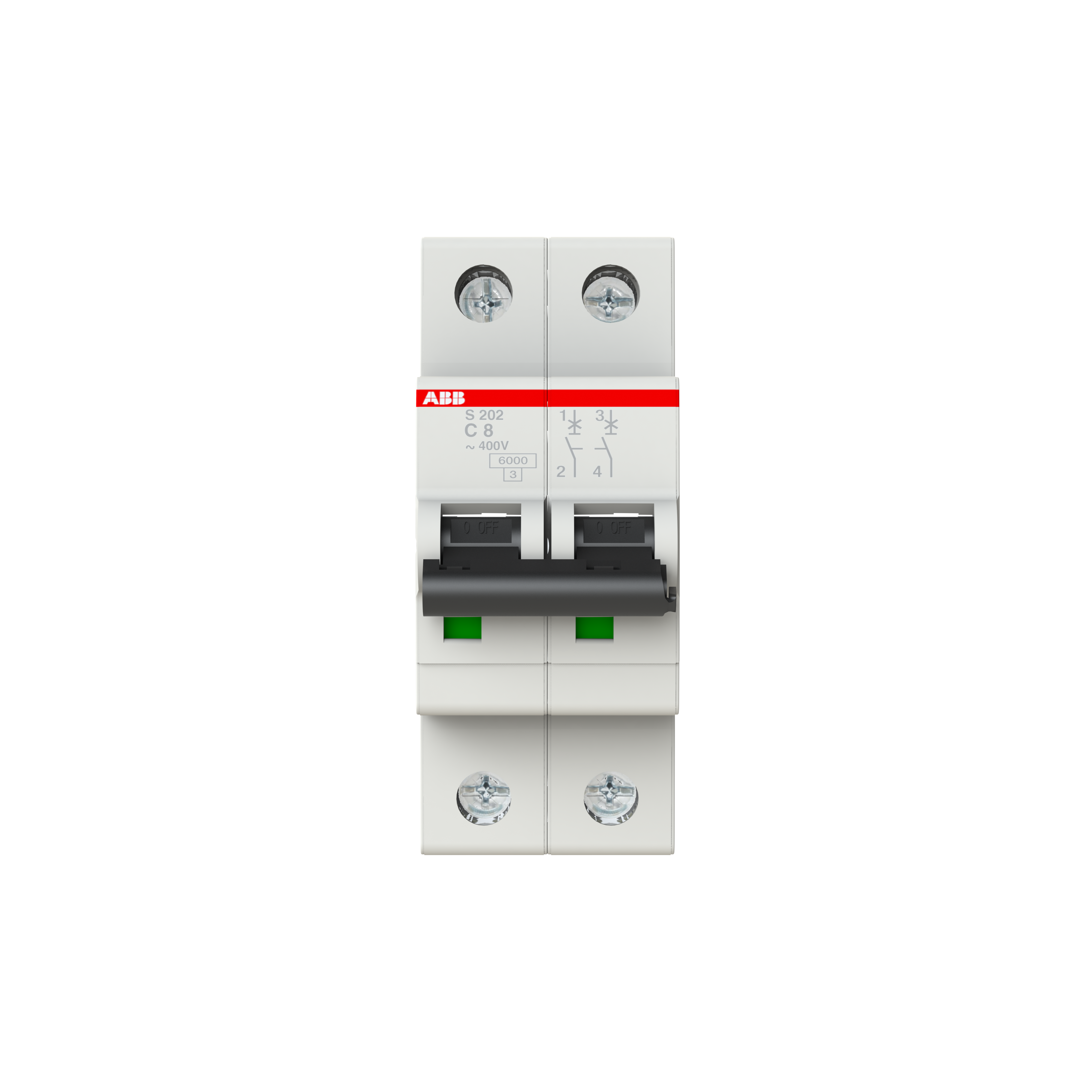

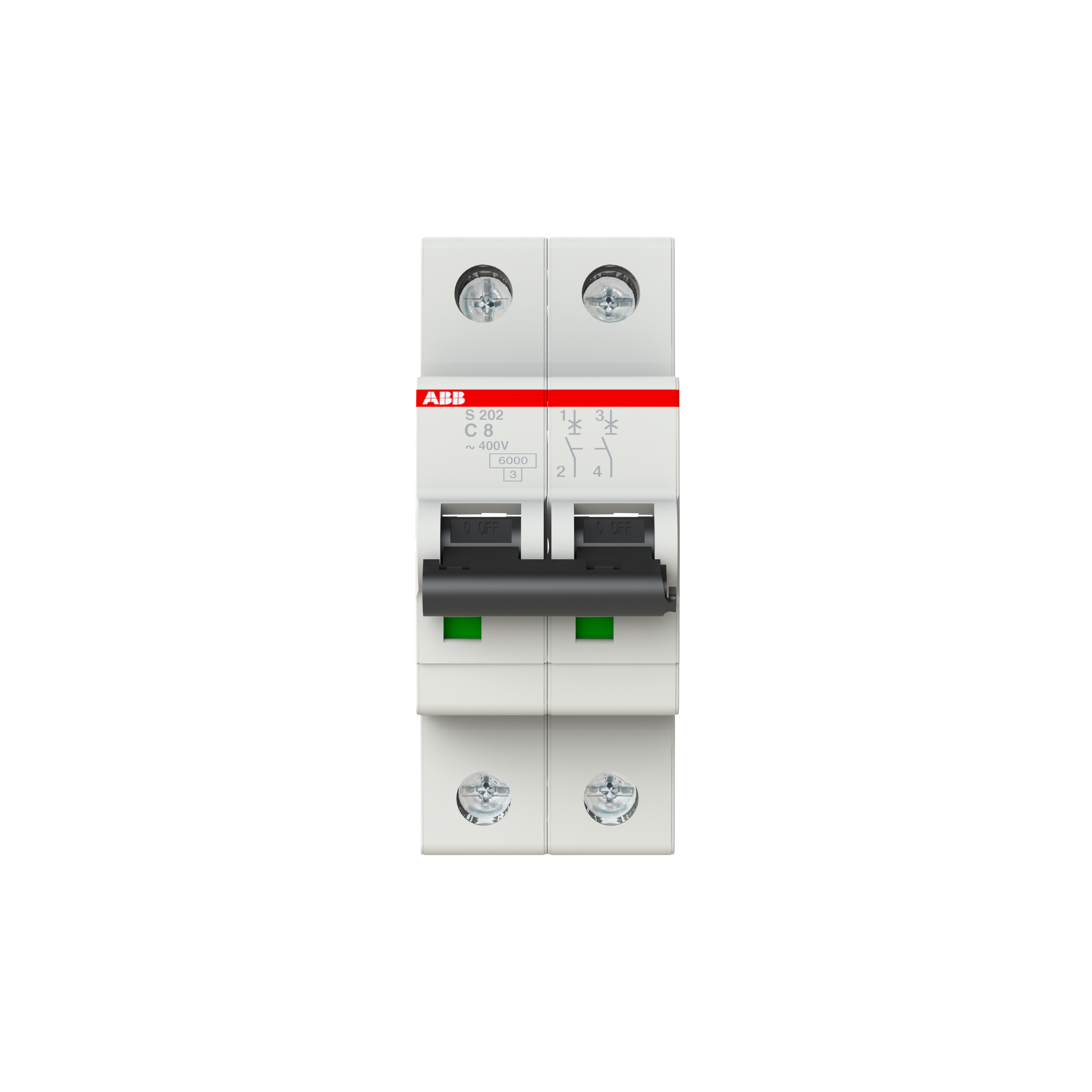

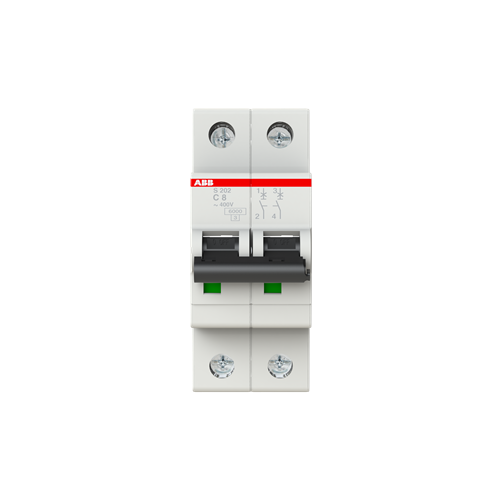

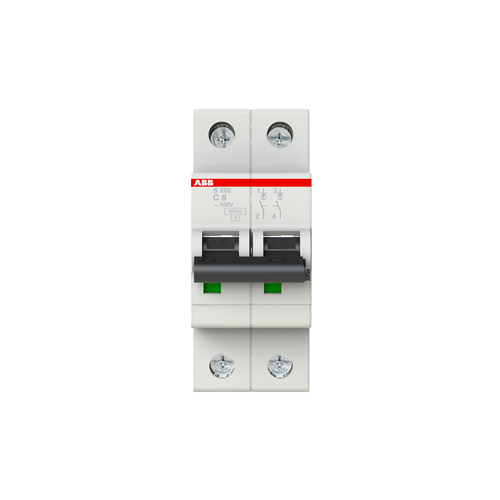

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200
Electrical Endurance	20000 Cycles
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	440 V
Power Loss	3 W
Rated Current	8 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	6 kA
Trip Curve	C
Terminal Type	Screw Clamp
Mounting Type	DIN Rail
Tightening Torque	2.8 N-m
Wire Stripping Length	12.5 mm
Depth	69 mm
Height	88 mm
Weight	0.25 kg
Width	35 mm
Pollution Degree	3
Operating Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
IP Rating	IP20
Standards and Approvals	IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
