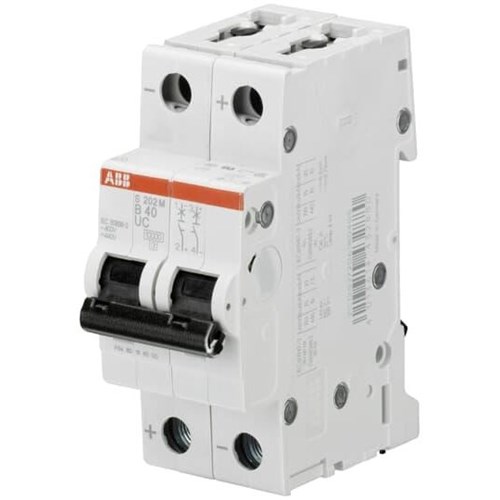

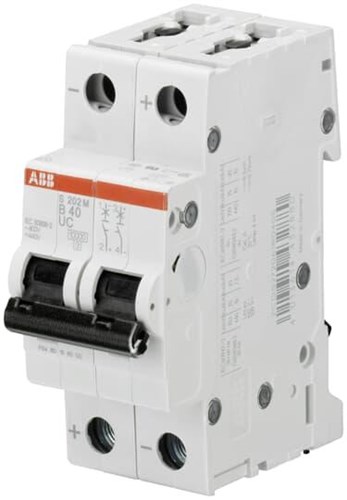

<p>When it comes to selecting an MCB (Miniature Circuit Breaker) for industrial and commercial applications, the S200MUC series stands out with its robust features and reliable performance. Designed to meet the demanding needs of modern electrical systems, this MCB ensures safety and efficiency across a variety of environments.</p><p>The S200MUC MCB is rated for a current of 8 A, making it suitable for moderate load protection. It operates effectively within a voltage range of 400/415 VAC, supported by a rated insulation voltage of 484 V. This model boasts an impressive breaking capacity of 15 kA at 400 VAC, ensuring it can handle significant fault currents without compromising system integrity.</p><p>One key feature is its high-rated impulse withstand voltage of 4 kV, which provides excellent protection against transient overvoltages often caused by lightning strikes or switching surges. The device&#39;s electrical durability is marked by its ability to endure up to 20,000 cycles, underscoring its long-term reliability in rigorous settings.</p><p>The S200MUC series adheres to multiple standards and approvals such as AS/NZS 60898-1, AS/NZS 60947-2, UL 1077, IEC/EN 60898-2, and IEC/EN 60947-2. These certifications ensure compliance with international safety norms and compatibility with various global installations.</p><p>For installation flexibility, this MCB supports DIN rail mounting—a standard choice that facilitates easy integration into existing panels. The screw clamp terminal type requires a tightening torque of 2.8 N-m for secure connections. It accommodates cable cross sections up to 35 sq-mm both on the top and bottom terminals while also allowing bulbar cross sections up to 10 sq-mm.</p><p>With dimensions measuring at a width of just 35 mm—thanks in part to its dual-pole design—it offers compactness without sacrificing performance. The housing comes in RAL 7035 grey color which blends seamlessly into most panel designs.</p><p>Operating efficiently between ambient temperatures ranging from -25&#176;C to +55&#176;C—and capable of storage between -40&#176;C and +70&#176;C—the S200MUC proves versatile across diverse climatic conditions. Its degree of protection is rated at IP20/IP2X (degree of pollution), providing adequate safeguarding against accidental contact with live parts but should be installed within appropriate enclosures when used in harsher environments.</p><p>In terms of power efficiency during operation—a crucial factor for many users—the power loss remains minimal at just about 1.54 W under normal conditions thereby contributing towards overall energy savings over time.</p><p>Finally yet importantly featured is the C curve type characteristic; ideal where moderate levels starting currents are expected like lighting circuits or small motor loads typically found within commercial setups thus preventing nuisance tripping while maintaining effective circuit protection throughout usage scenarios encountered routinely day after day consistently delivering peace mind knowing your infrastructure protected reliably dependably every single time you flip switch turn things back online again safely securely confidently assuredly so!</p><p>Series: S200MUC</p>
