Specifications

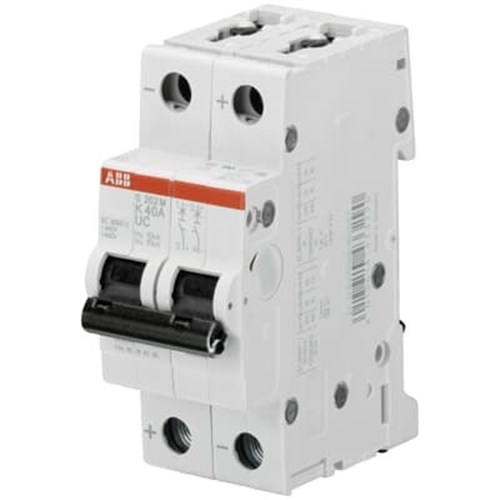

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200MUC
Application	Industrial
Rated Impulse Withstand Voltage (Uimp)	4 kV
Power Loss	2.2 W
Rated Current	0.5 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	10 kA
Rated Voltage	400/415 VAC
Trip Curve	K
Terminal Type	Screw Clamp
Housing Colour	RAL 7035 Grey
Tightening Torque	2.8 N-m
Depth	69 mm
Height	88 mm
Width	35 mm
Standards and Approvals	CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
