Specifications

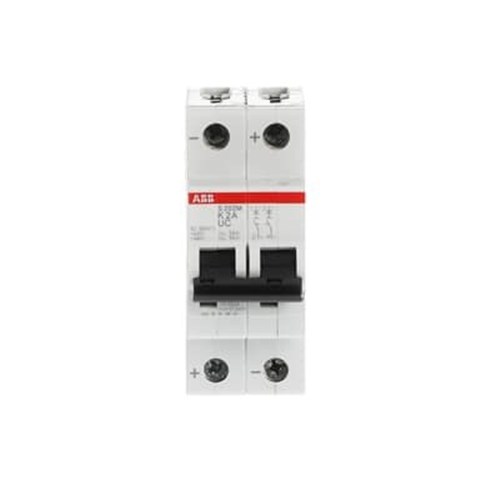

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200MUC
Ambient Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
Application	Industrial
Collection	S200MUC
Curve Type	K
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	69 mm
Height	88 mm
Housing Colour	RAL 7035 Grey
Impulse Voltage	4 kV
Number of Poles	2
Power Loss	3.56 W
Rated Current	2 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	10 kA
Rated Voltage	400/415 VAC
Standards and Approvals	CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
Trip Curve	K Curve
Width	35 mm
