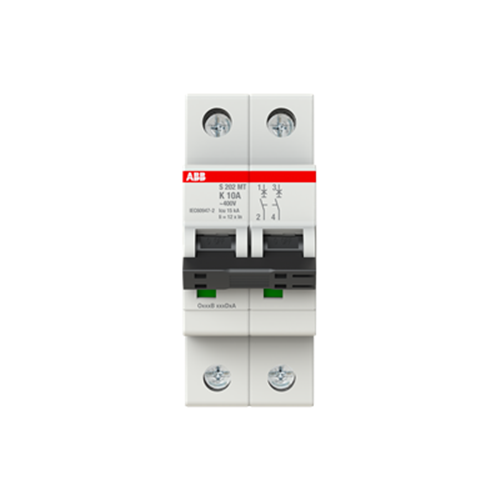

ABB S202MT-K10 Miniature Circuit Breaker 10 kA 2-P 10A 400VAC K-Curve

Product Code: S202MT-K10

  • 10 A rated current, ideal for moderate loads
  • 10kA breaking capacity ensures reliability
  • IP20 protection for safe indoor use
  • DIN rail mounting simplifies installation
  • Operates in -25 to 55°C environments
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Miniature Circuit Breaker
Brand ABB
Series S200MT
Ambient Temperature -25 to 55 deg C Operation, -40 to 70 deg C Storage
Curve Type K
Degree of Pollution IP3
Degree of Protection IP20
Depth 69 mm
Height 88 mm
Housing Colour RAL 7035 Grey
Mounting Type DIN Rail
Number of Poles 2
Power Loss 5.4 W
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 440 V
Rated Short Circuit Current 10 kA
Rated Voltage 400 VAC
Standards and Approvals IEC/EN 60947-2
Terminal Type Screw Clamp
Tightening Torque 2.8 N-m
Width 35 mm

Description

<p>This product is a robust and reliable choice for professionals in the industrial and commercial sectors, designed to meet demanding electrical standards. With a rated current of 10 A, it provides efficient performance for various applications. Its rated voltage stands at 400 VAC, while the rated insulation voltage is 440 V, ensuring safe operation across diverse environments.</p><p>The product&amp;#39;s breaking capacity reaches an impressive 11.3 kA, supported by a short circuit capacity of 10 kA. This makes it suitable for systems requiring high fault level protection. The device adheres to IEC/EN 60947-2 standards and approvals, guaranteeing compliance with international safety and quality benchmarks.</p><p>Designed with practicality in mind, this unit features a screw clamp terminal type that allows secure connections with a tightening torque of 2.8 N-m. It has an IP20 degree of protection against solid objects over 12 mm but is not water-resistant; however, its degree of pollution rating at IP3 indicates suitability for indoor use in less severe conditions.</p><p>With dimensions measuring 35 mm in width, 88 mm in height, and 69 mm in depth, it offers compact installation on standard DIN rails. The housing comes in RAL 7035 grey color that blends seamlessly into most control panels or switchboards.</p><p>The curve type K ensures optimal tripping characteristics suitable for inductive loads such as motors or transformers. Operating efficiently within ambient temperatures ranging from -25 to +55 degrees Celsius and storage temperatures from -40 to +70 degrees Celsius adds versatility for varied climatic conditions.</p><p>Power loss is maintained at just 5.4 W which contributes to energy efficiency without compromising performance integrity over time—an important factor when considering long-term operational costs.</p><p>Overall this product serves as a dependable component within electrical distribution networks where reliability durability are paramount considerations ensuring peace-of-mind through consistent service delivery even under challenging circumstances thanks largely due its carefully engineered specifications tailored specifically towards meeting industry needs effectively efficiently alike all encapsulated neatly within Manufacturer Part Number: [insert here if applicable].</p>
