Specifications

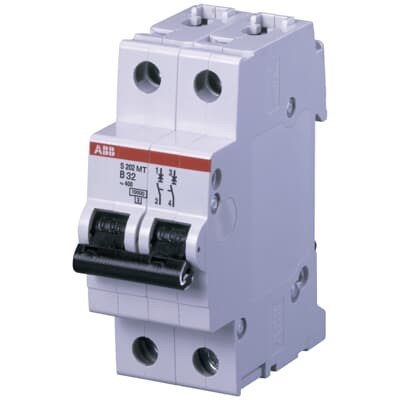

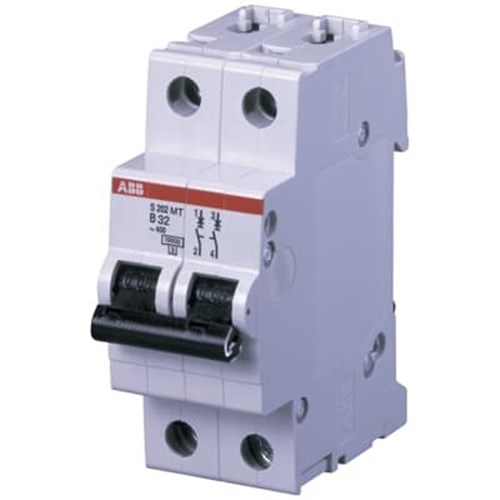

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200MT
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	440 V
Power Loss	5.4 W
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	10 kA
Rated Voltage	400 V
Trip Curve	Z
Terminal Type	Screw Clamp
Housing Colour	RAL 7035 Grey
Tightening Torque	2.8 N-m
Depth	69 mm
Height	88 mm
Width	35 mm
Pollution Degree	3
Operating Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
IP Rating	IP20
Standards and Approvals	IEC/EN 60947-2
