Specifications

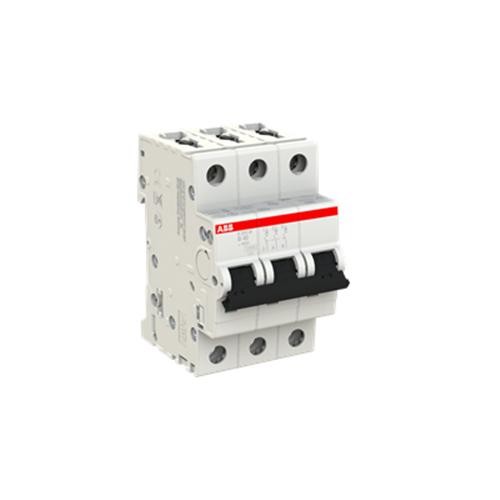

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200M
Ambient Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
Curve Type	B
Degree of Protection	IP20/IP40
Depth	69 mm
Electrical Durability	20000 Cycles, 10000 Cycles
Height	88 mm
Housing Colour	RAL 7035 Grey
Number of Poles	3
Power Loss	14.4 W
Rated Current	40 A
Rated Frequency	50/60 Hz
Rated Insulation Voltage	440 V
Rated Short Circuit Current	10 kA
Rated Voltage	400 V
Standards and Approvals	IEC/EN 60898-1, CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
Width	52.5 mm
