Specifications

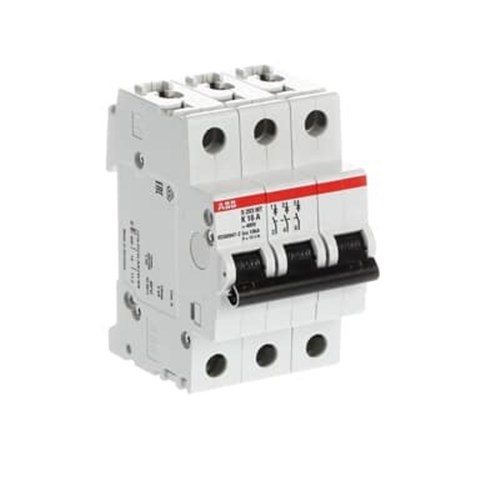

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200MT
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	440 V
Power Loss	6.6 W
Rated Current	16 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	10 kA
Trip Curve	K
Terminal Type	Screw Clamp
Housing Colour	RAL 7035 Grey
Tightening Torque	2.8 N-m
Depth	69 mm
Height	88 mm
Width	52.5 mm
Operating Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
IP Rating	IP20
Standards and Approvals	IEC/EN 60947-2
