Specifications

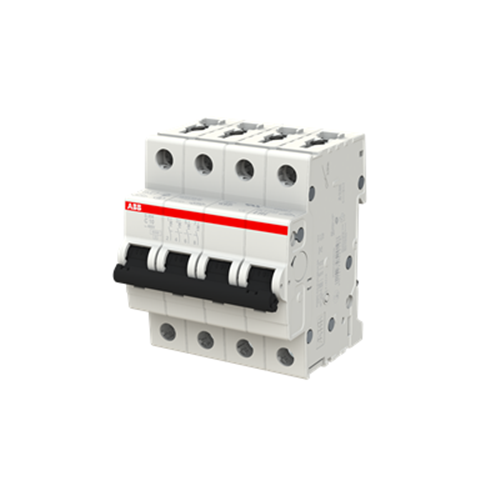

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200
Application	Residential, Commercial and Industrial
Cable Cross Section	25 sq-mm Top, 35 sq-mm Bottom
Collection	S200
Curve Type	C
Degree of Pollution	IP3
Depth	69 mm
Electrical Durability	20000 Cycles
Height	88 mm
Housing Colour	RAL 7035 Grey
Impulse Voltage	4 kV
Mounting Type	DIN Rail
Number of Poles	4
Power Loss	8.4 W
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	6 kA
Rated Voltage	400/440 VAC
Standards and Approvals	EN, IEC/EN 60898-1, IEC/EN 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
Trip Curve	C Curve
Width	70 mm
Wire Stripping Length	12.5 mm
