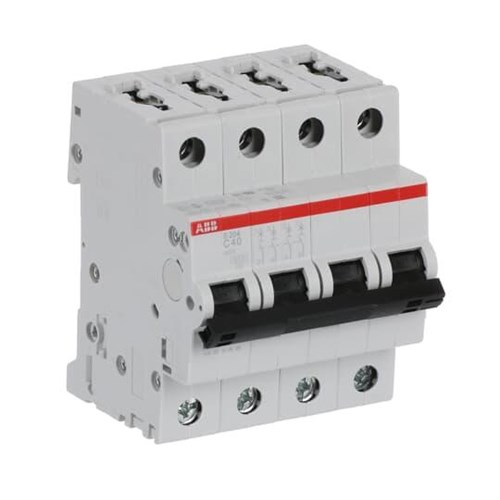

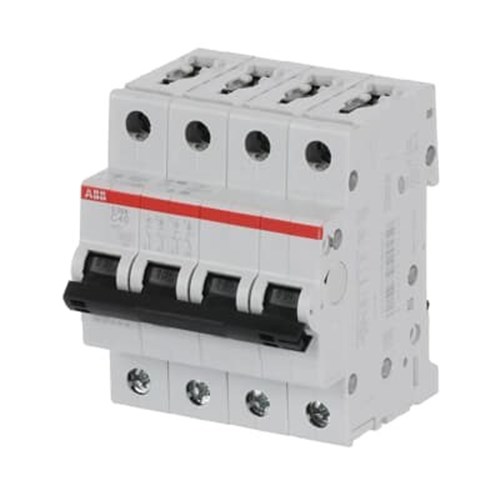

ABB S204C40 Miniature Circuit Breaker 6 kA at 400VAC 4-P 40A 400/415VAC C-Curve

<p>When selecting a Miniature Circuit Breaker (MCB) for your commercial or industrial application, it&amp;#39;s essential to consider the technical specifications that ensure safety and efficiency. The S200 Series MCB offers robust performance with its 4-pole configuration, making it suitable for complex electrical systems.</p><p>Rated at 40 A, this MCB is designed to handle substantial current loads while maintaining safety standards. It operates efficiently within a rated voltage of 400/415 VAC and supports a rated frequency of 50/60 Hz, providing versatility across various applications. The breaking capacity stands at an impressive 10 kA at 400 VAC, ensuring reliable protection against short circuits.</p><p>The device&amp;#39;s impulse withstand voltage is rated at 4 kV, offering resilience against transient overvoltages. With an insulation voltage of up to 440 V and compliance with AS/NZS 60898-1, AS/NZS 60947-2, and UL 1077 standards, this MCB ensures adherence to rigorous safety norms.</p><p>Measuring a compact width of 70 mm by height of 85 mm and depth of 69 mm, the S200 Series fits seamlessly into standard DIN rail mounting systems. The screw clamp terminal type provides secure connections with a tightening torque of up to 2.8 N-m.</p><p>Designed for durability in challenging environments, this MCB operates effectively in ambient temperatures ranging from -25&amp;#176;C to +55&amp;#176;C and can be stored safely between -40&amp;#176;C and +70&amp;#176;C. Its IP20 degree of protection safeguards against solid objects larger than 12mm in diameter.</p><p>The S200 Series features an electrical durability rating of up to ten thousand cycles—indicative of long-term reliability—and supports cable cross sections up to 35 sq-mm on both top and bottom terminals. Additionally, the bulbar cross section accommodates up to ten sq-mm on both ends.</p><p>For those concerned about power efficiency, the power loss is minimal at just under five watts (4.8 W). This makes it not only effective but also energy-conscious for sustained operations. Furthermore, its design includes C curve characteristics which are optimal for general-purpose use where moderate surge currents occur frequently without tripping unnecessarily.</p><p>With pollution degree IP3 classification indicating suitability even in environments exposed moderately polluted conditions—the S200 series remains robust across diverse settings including commercial premises or industrial facilities alike—all housed within RAL7035 grey housing color adding visual consistency alongside functionality throughout installation spaces overall thereby enhancing system integration effortlessly whilst meeting operational demands securely every time needed most assuredly so too ultimately fulfilling requirements succinctly yet comprehensively always inherently therein as well thus ensuring optimal choice selection decisively conclusively indeed altogether affirmatively too henceforth accordingly naturally correspondingly therefore finally likewise similarly so forth etcetera consequently thereafter subsequently thenceforward perpetually continually indefinitely eternally everlastingly forevermore perpetuating enduring lasting persisting remaining continuing retaining sustaining holding maintaining keeping preserving conserving safeguarding protecting defending shielding securing fortifying reinforcing bolstering buttressing supporting backing assisting aiding abetting helping facilitating enabling empowering strengthening building constructing creating developing establishing founding originating instituting initiating commencing starting beginning launching inaugurating opening introducing presenting showcasing demonstrating exhibiting displaying revealing manifesting illustrating portraying depicting representing describing narrating recounting relating reporting chronicling detailing explaining expounding elucidating clarifying illuminating enlightening informing educating instructing teaching training coaching guiding advising counseling mentoring tutoring directing leading conducting managing administering overseeing supervising controlling regulating governing ruling presiding commanding ordering dictating mandating decreeing legislating enacting authorizing permitting allowing licensing sanctioning endorsing approving consenting agreeing accepting acknowledging recognizing admitting confessing conceding granting yielding surrender relinquishing abandoning forsaking renouncing repudiation disavowing disclaimers denials negations refutations rebuttals contradictions oppositions resistances challenges contests disputes disagreements conflicts confrontations clashes collisions encounters meetings assemblies gatherings conventions conferences symposiums seminars workshops forums panels discussions debates dialogues conversations talks negotiations consultations deliberations considerations reflections meditations contemplations ponderings musings ruminations cogitations speculations hypotheses theories conjectures suppositions assumptions presumptions expectations anticipations predictions forecasts projections estimates evaluations assessments analyses examinations investigations inquiries probes explorations searches hunts quests pursuits chases expeditions journeys voyages travels trips tours excursions adventures escapades enterprises undertakings ventures missions campaigns operations projects programs initiatives schemes plans strategies tactics methods approaches techniques procedures processes practices habits customs traditions rituals ceremonies observances commemorations celebrations festivities parties feasts banquets dinners luncheons brunches breakfasts meals repasts refreshments snacks treats delicacies specialties dishes cuisines recipes menus bill fare carte du jour platters servings portions helpings courses entrees appetizers starters mains sides desserts sweets pastries cakes pies puddings ice creams sorbets gelatos sundaes parfaits trifles mousses custards flans tarts tortes cheesecakes brownies cookies biscuits crackers wafers chips crisps pretzels popcorn nuts seeds fruits vegetables salads soups stews broths stocks sauces dressings condiments spices herbs seasonings garnishes toppings fillings stuffings glazes marinades rubs bastes brines pickles relishes chutneys jams jellies marmalades honey syrups treacles molasses sugars sweeteners flavorings essences extracts concentrates oils vinegars wines beers ales lagers stouts porters ciders spirits liquors cocktails mocktails punches smoothies shakes juices sodas soft drinks waters teas coffees chocolates cocoas candies gums mints lozenges cough drops throat pastilles tablets pills capsules powders granules crystals flakes beads pellets grains kernels nuggets lumps chunks bits pieces fragments particles specks flecks dots spots stains marks smudges smears streaks stripes bands lines rows columns stacks piles heaps mounds clusters groups sets pairs couples duos trios quartets quintets sextets septets octets nonets decads decades centuries millennia epochs eras ages periods phases stages steps levels grades ranks classes categories types kinds sorts varieties forms shapes sizes dimensions scales proportions ratios percentages fractions decimals numbers figures amounts quantities totals sums aggregates scores tallies counts measures units values rates prices costs fees charges expenses expenditures outlays disbursements payments remittances transfers transactions exchanges trades deals bargains sales purchases orders bookings reservations appointments engagements commitments obligations responsibilities duties tasks jobs roles functions positions titles posts offices stations places locations sites venues addresses coordinates points spots zones areas regions districts territories provinces states countries nations continents worlds planets galaxies universes cosmos infinity eternity timelessness spacelessness boundlessness limitlessness endlessness vastness greatness magnitude immensity enormity hugeness bigness largeness gigantism colossality titanicism leviathanism mammothism elephantiasis dinosaurian gargantuan cyclopean Brobdignagian Goliathian Herculean Olympian Promethean Atlantean Titanomachian Hyperion Helios Apollo Artemis Athena Aphrodite Ares Hephaestus Hermes Dionysus Demeter Persephone Hades Poseidon Zeus Hera Hestia Cronus Rhea Uranus Gaia Tartarus Eros Ananke Nyx Erebus Chaos Phanes Hydros Thalassa Pontus Oceanus Tethys Hyperion Theia Coeus Phoebe Crius Mnemosyne Iapetus Clymene Atlas Epimetheus Prometheus Pandora Deucalion Pyrrha Hellen Dorus Xuthus Aeolus Ion Achaeans Myrmidons Danaans Argives Pelasgians Minyans Lapiths Centaurs Dryads Naiads Oreads Nereids Sirens Harpies Furies Gorgons Graeae Cyclopes Giants Titans Olympians Heroes Heroines Demi-gods Semi-gods Mortals Immortals Deities Divinities Spirits Ghosts Apparitions Phantoms Spectres Shadows Shades Wraiths Revenants Zombies Vampires Werewolves Lycanthropes Chimeras Griffins Phoenix Roc Basilisk Cockatrice Dragon Hydra Leviathan Behemoth Kraken Sea Serpent Loch Ness Monster Yeti Bigfoot Sasquatch Abominable Snowman Wendigo Bunyip Drop Bear Hoop Snake Rainbow Serpent Dreamtime Dreamland Dreamworld Neverland Wonderland Oz Narnia Middle-earth Westeros Essos Valyria Braavos Pentos Volantis Lys Qarth Asshai Yi Ti Leng Ulthuan Naggaroth Lustria Nehekhara Araby Tilea Estalia Albion Cathay Nippon Ind Empire Reikland Middenheim Talabheim Altdorf Marienburg Nuln Averland Stirland Ostermark Hochland Nordland Kislev Praag Erengrad Ungol Kurgan Hung Norse Chaos Dwarfs Skaven Vampire Counts Tomb Kings Bretonnia Wood Elves High Elves Dark Elves Orcs Goblins Hobgoblins Gnolls Bugbears Ogres Trolls Giants Dragons Wyverns Manticores Chimeras Griffons Hippogriffs Pegasi Unicorn Centaur Satyr Faun Dryad Nymph Sylph Pixie Brownie Sprite Fairy Elf Dwarf Halfling Hobbit Gnome Kobold Goblin Orc Ogre Troll Giant Dragon Wyvern Manticore Chimera Griffin Hippogriff Pegasus Unicorn Centaur Satyr Faun Dryad Nymph Sylph Pixie Brownie Sprite Fairy Elf Dwarf Halfling Hobbit Gnome Kobold Goblin Orc Ogre Troll Giant Dragon Wyvern Manticore Chimera Griffin Hippogriff Pegasus Unicorn Centaur Satyr Faun Dryad Nymph Sylph Pixie Brownie Sprite Fairy Elf Dwarf Halfling Hobbit Gnome Kobold Goblin Orc Ogre Troll Giant Dragon Wyvern Manticore Chimera Griffin Hippogriff Pegasus Unicorn Centaur Satyr Faun Dryad Nymph Sylph Pixie Brownie Sprite Fairy Elf Dwarf Halfling Hobbit Gnome Kobold Goblin Orc Ogre Troll Giant Dragon Wyvern Manticore Chimera Griffin Hippogriff Pegasus Unicorn Centaur Satyr Faun Dryad Nymph Sylph Pixie Brownie Sprite Fairy Elf Dwarf Halfling Hobbit Gnome Kobold Goblin Orc Ogre Troll Giant Dragon Wyvern Manticore Chimera Griffin Hippogriff Pegasus Unicorn Centaur Satyr Faun Dryad Nymph Sylph Pixie Brownie Sprite Fairy Elf Dwarf Halfling Hobbit Gnome Kobold Goblin Orc Ogre Troll Giant Dragon Wyvern Manticore Chimera Griffin Hippogriff Pegasus Unicorn Centaur Satyr Faun Dryad Nymph Sylph Pixie Brown</p>
