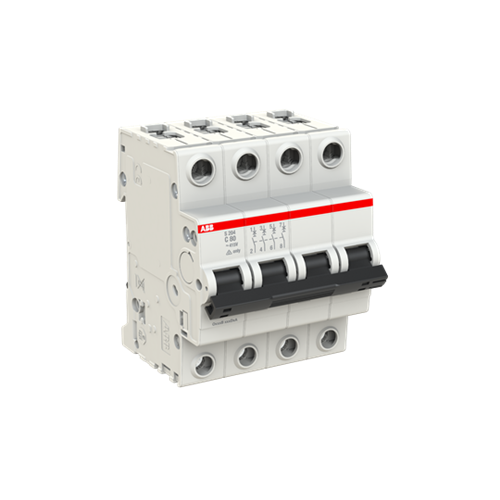

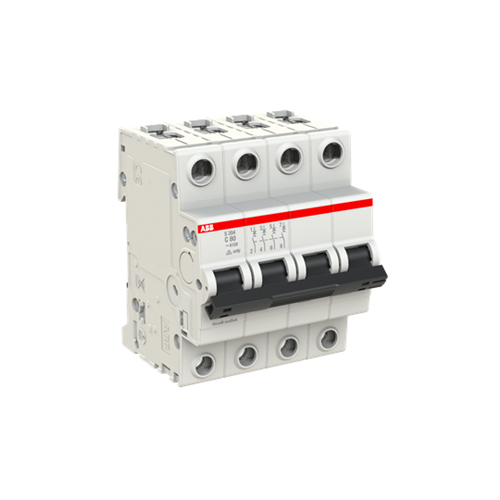

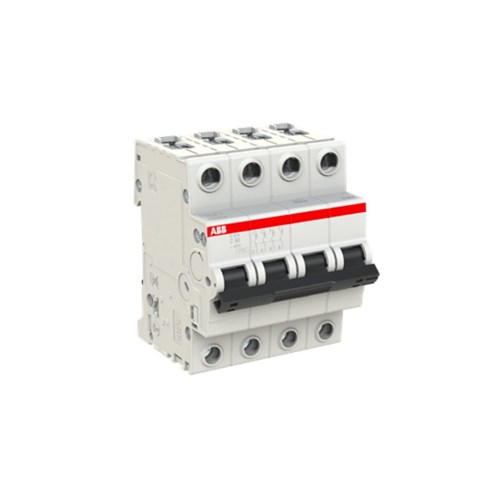

<p>The S200 Series MCB is a robust and reliable solution designed for commercial and industrial applications, offering a blend of efficiency and durability. With a rated current of 80 A, this miniature circuit breaker (MCB) ensures optimal performance under demanding conditions.</p><p>Engineered to withstand high electrical stress, it features a rated impulse withstand voltage of 4 kV and an insulation voltage of 440 V. The MCB operates efficiently within a rated voltage range of 400/415 VAC, making it suitable for diverse electrical systems. Its breaking capacity is impressive at 10 kA at 400 VAC, ensuring effective interruption in fault conditions.</p><p>The S200 Series MCB maintains low power loss at just 9.8 W, contributing to energy efficiency within your system. It comes with four poles and adheres to the C curve type, which offers moderate tripping characteristics ideal for general use in commercial settings.</p><p>Built with safety in mind, the product boasts an IP20 degree of protection against solid objects larger than 12 mm but should be installed in enclosures where water ingress is not a concern. It also meets rigorous standards such as AS/NZS 60898-1, AS/NZS 60947-2, and UL 1077 approvals—assuring compliance with Australian safety regulations.</p><p>Installation is straightforward due to its screw clamp terminal type that supports cable cross sections up to 35 sq-mm on both top and bottom connections. The recommended tightening torque is set at 3 N-m to ensure secure connections without damaging wires.</p><p>Compact yet sturdy, the dimensions are practical for various installations: width measures at 70 mm while height reaches up to 85 mm with depth being just shy of that at 69 mm. The pole width stands at a standard size of 17.5 mm enabling easy integration into existing setups on DIN rails.</p><p>Operating reliably across temperatures from -25&#176;C up to +55&#176;C ensures versatility whether you’re operating in harsh climates or controlled environments; storage capabilities extend from -40&#176;C up through +70&#176;C preserving functionality during transport or downtime periods.</p><p>Electrical durability extends over an impressive lifespan capable of enduring up to ten thousand cycles ensuring long-term reliability even under frequent operation demands which can often be expected within commercial infrastructures where load variations are common place occurrences—further supported by short circuit capacities reaching as high as six kiloamperes along side rated short circuit currents peaking twenty kiloamperes providing ample security against unexpected surges</p><p>Finished off elegantly with RAL7035 grey housing color blending seamlessly into most professional environments maintaining aesthetic consistency alongside functional excellence</p><p>In summary if you&#39;re seeking dependable mid-range protection solutions tailored specifically towards modern-day commercial industry needs then look no further than what’s offered here by way collecting together all these attributes found uniquely packaged inside every unit belonging proudly under banner name ‘S200 Collection’</p>
