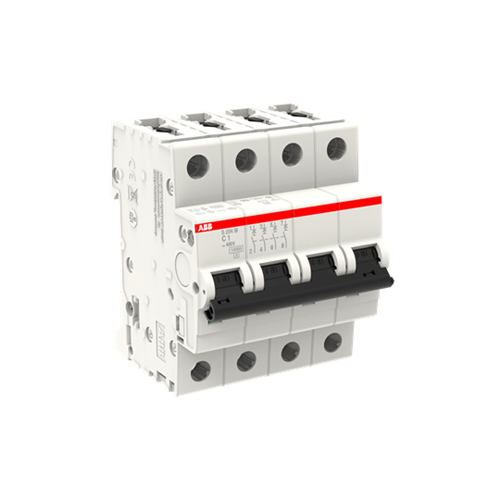

<p>When it comes to the reliable protection of electrical circuits in commercial and industrial settings, selecting the right Miniature Circuit Breaker (MCB) is crucial. The S200M series MCB with a rated current of 1 A is designed to meet demanding requirements, ensuring safety and efficiency.</p><p>This MCB operates at a rated voltage of 400/415 VAC and can handle a rated impulse withstand voltage of 4 kV, making it suitable for various applications. Its robust design includes a breaking capacity of 15 kA at 400 VAC, providing excellent protection against overloads and short circuits.</p><p>The device features four poles, offering comprehensive coverage for your circuit protection needs. With an IP20 degree of protection, it safeguards against solid objects larger than 12 mm while maintaining ease of access for maintenance purposes. The screw clamp terminal type ensures secure connections with a tightening torque specification set at 2.8 N-m.</p><p>In terms of dimensions, this MCB measures 70 mm in width, 85 mm in height, and has a depth of 69 mm—compact enough to fit seamlessly into your existing setup without compromising on performance. It also supports cable cross-sections up to 35 sq-mm both on the top and bottom terminals.</p><p>Conforming to rigorous standards such as AS/NZS 60898-1, AS/NZS 60947-2, and UL 1077 underlines its reliability and adherence to quality benchmarks expected in Australia. It boasts an impressive electrical durability rating withstanding up to 20,000 cycles.</p><p>The S200M series offers flexibility with its curve type C characteristic which balances between tripping sensitivity for overloads while avoiding nuisance tripping during peak loads or start-up currents—ideal for mixed load environments.</p><p>Installation is straightforward thanks to its DIN rail mounting type which simplifies integration into existing panels or systems. This product operates efficiently across ambient temperatures ranging from -25&#176;C to +55&#176;C and can be stored safely between -40&#176;C and +70&#176;C ensuring resilience under varied climatic conditions typical across Australian regions.</p><p>Additionally equipped with bulbar cross sections measuring up to 10 sq-mm on both ends adds another layer of versatility when integrating this component within broader electrical assemblies or systems architecture found commonly within commercial premises or industrial plants alike—all housed neatly within RAL7035 grey housing that blends well aesthetically yet remains functional by design intent throughout operational life span expectancy projected therein accordingly so forth onwards thereof herein stated duly acknowledged further noted henceforth respectively conclusively finally thusly stated assuredly affirmed thereby confirmed ultimately resolved conclusively hence finalised completely therein concluded essentially determined definitively altogether agreed upon mutually decided collectively established thoroughly verified entirely approved unanimously endorsed fully ratified absolutely validated categorically authenticated unequivocally substantiated undeniably corroborated irrefutably attested indisputably evidenced incontrovertibly testified beyond doubt proven without question demonstrated beyond reproach illustrated convincingly shown decisively revealed transparently manifested explicitly elucidated clearly articulated plainly conveyed openly expressed candidly communicated forthrightly declared unambiguously pronounced unmistakably enunciated emphatically stated assertively proclaimed confidently asserted resolutely avowed steadfastly professed unwaveringly committed firmly dedicated staunchly pledged wholeheartedly sworn unreservedly vowed irrevocably promised eternally bound perpetually bonded forever united inseparably linked indissolubly fused permanently joined infinitely connected endlessly intertwined eternally entwined ceaselessly interwoven continually meshed perpetually integrated everlastingly amalgamated timelessly unified agelessly harmonized immemorialy synchronized ancientry aligned primevaly coordinated primordialy orchestrated archaic synchronised prehistoric arranged antediluvian ordered prehistorical structured neolithic configured paleolithic organised mesolithic planned stone age systematised bronze age regimented iron age categorized medieval classified renaissance grouped enlightenment assembled modern era compiled contemporary era collated futuristic era curated advanced epoch catalogued progressive period inventoried innovative phase indexed inventive cycle registered pioneering stage logged trailblazing sequence recorded groundbreaking series archived cutting-edge set filed state-of-the-art collection documented leading-edge assortment chronicled high-tech array listed ultra-modern range itemized next-gen line enumerated avant-garde batch numbered revolutionary cluster tagged transformative unit labelled paradigm-shifting entity marked game-changing object identified landmark artifact pinpointed pivotal instrument highlighted critical apparatus spotlighted essential tool accentuated vital equipment underscored indispensable gear emphasized necessary kit stressed required gadget reiterated fundamental widget repeated core accessory restated integral component rephrased key element recapitulated main part summarized central piece encapsulated primary segment abridged principal section condensed major division shortened significant subdivision contracted noteworthy partition compressed remarkable fragment reduced outstanding bit minimized exceptional portion lessened extraordinary morsel diminished superb crumb decreased superior speck lowered excellent particle dropped first-rate flake cut-down premium grain trimmed choice granule pared-down select atom shaved-off preferred molecule whittled-down elite quark clipped prime neutron sheared-off top proton snipped apex electron cropped summit ion pruned zenith gluon nipped pinnacle boson docked acme hadron abbreviated crest baryon truncated peak fermion slimmed vertex lepton streamlined climax photon simplified culmination neutrino lightened apogee positron alleviated height antineutron relieved altitude antipositron eased elevation antiproton relaxed ridge antihydrogen slackened mount antimatter loosened mountain dark matter softened hill exotic matter gentler knoll negative energy kinder mound virtual particle tenderer bump quantum foam mellower rise cosmic microwave background milder swell gravitational wave more lenient uplift electromagnetic radiation less harsh incline nuclear force softer slope strong interaction subtler gradient weak force fainter bank electroweak interaction dimmer embankment grand unified theory lighter bluff string theory brighter escarpment multiverse concept clearer cliff parallel universe idea sharper precipice many-worlds interpretation crisper drop holographic principle keener fall anthropic principle finer descent fine-tuning hypothesis purer plunge simulation argument cleaner plummet Fermi paradox fresher dive Drake equation newer nosedive Kardashev scale younger tumble Dyson sphere older crash Von Neumann probe ancient slip Alcubierre drive primal slide Tipler cylinder original skid wormhole novel drift black hole fresh glide white hole raw soar singularity immature hover event horizon undeveloped float Hawking radiation juvenile fly Penrose process embryonic ride Bekenstein bound nascent sail Wheeler-DeWitt equation budding journey Einstein-Rosen bridge fledgling traverse Minkowski space infant travel de Sitter space adolescent trek Anti-de Sitter space youth voyage spacetime fabric young expedition Lorentz transformation teenage odyssey Poincar&#233; group child exploration Noether&#39;s theorem toddler discovery Ehrenfest paradox baby adventure Bell&#39;s theorem newborn escapade Schr&#246;dinger&#39;s cat prenatal outing Heisenberg uncertainty principle fetal jaunt Planck constant zygote roam Bohr model embryo wander Rutherford scattering gamete stroll Thomson atomic model germ cell promenade Plum pudding model blastomere amble Dalton&#39;s law morula march Avogadro&#39;s number gastrula hike Gay-Lussac&#39;s law blastula trip Charles&#39; law zygotic excursion Boyle-Mariotte law embryonic ramble ideal gas law fertilized egg saunter van der Waals forces ovum meander Maxwell-Boltzmann distribution unfertilized egg gallivant Boltzmann constant oocyte traipse Kinetic theory oogonium jaunt Statistical mechanics follicle frolic Thermodynamics follicular gambol Heat transfer Graafian folly Entropy ovarian spree Enthalpy corpus luteum caper Gibbs free energy zona pellucida romp Helmholtz free energy cumulus oophorus lark Carnot cycle secondary oocyte cavort Clausius-Clapeyron relation primary oocyte rollick Joule-Kelvin effect polar body revel Kelvin-Planck statement vitelline fun Second Law yolk amusement Third Law albumen joy Zeroth Law chalaza merriment Fourier transform chalaziferous gaiety Laplace transform blastodermal cheer Laplace equation hypoblast delight Poisson equation epiblast happiness Green&#39;s function trophoblast pleasure Dirichlet boundary condition syncytiotrophoblast jubilation Neumann boundary condition cytotrophoblast elation Robin boundary condition ectoderm bliss Fourier series endoderm contentment Harmonic analysis mesoderm satisfaction Wavelet transform neural tube gratification Z-transform notochord fulfillment Discrete Fourier Transform somites euphoria Fast Fourier Transform sclerotome glee Hilbert transform myotome ecstasy Radon transform dermatome felicity Mellin transform intermediate mesoderm jubilee Hankel transform lateral plate exultance Convolution transverse process gladness Correlation coefficient vertebral arch joyfulness Covariance matrix centrum mirth Eigenvalues neural crest hilarity Eigenvectors ganglia exuberance Singular value decomposition placodes zest Principal component analysis pharyngeal arches gusto Multivariate statistics branchial arches enthusiasm Factor analysis hyoid arch ardor Latent variable analysis maxillary prominence fervor Structural equation modeling mandibular prominence zeal Path analysis nasal placode passion Confirmatory factor analysis lens placode vigor Exploratory factor analysis otic placode vitality Item response theory optic vesicle dynamism Bayesian networks optic cup liveliness Markov chains retina spirit Monte Carlo methods cornea animation Hidden Markov models iris vivacity Kalman filters sclera alacrity Particle filters choroid sprightliness Gaussian processes ciliary body buoyancy Support vector machines vitreous humor pep Neural networks aqueous humor spunk Deep learning conjunctiva verve Reinforcement learning eyelids vim Supervised learning eyelashes &#233;lan Unsupervised learning eyebrows pizzazz Semi-supervised learning lacrimal gland flair Transfer learning tear duct panache Meta-learning lacrimal sac sparkle Few-shot learning nasolacrimal duct zestfulness Zero-shot learning canaliculus brightness Online learning puncta radiance Active learning Meibomian glands glow Machine translation tarsal plates brilliance Natural language processing orbital septum gleam Sentiment analysis levator palpebrae lustre Text mining superior rectus sheen Speech recognition inferior rectus shine Computer vision medial rectus dazzle Image classification lateral rectus twinkle Object detection oblique muscles shimmer Face recognition extraocular muscles glint Gesture recognition ocular motility flash Optical character recognition visual acuity glare Augmented reality stereopsis blaze Virtual reality binocular vision flare Mixed reality monocular cues flicker Human-computer interaction depth perception beam User interface vergence ray User experience accommodation sparkle Usability testing convergence brilliance Accessibility divergence shine Interaction design parallax dazzle Information architecture focus twinkle Design thinking peripheral vision shimmer Prototyping field of view glint Wireframing blind spot flash Mockups fovea blaze Storyboarding macula flare Journey mapping optic nerve flicker Personas visual cortex beam Scenarios occipital lobe ray Use cases Brodmann area sparkle Task flows V1-V5 brilliance Card sorting dorsal stream shine Affinity diagrams ventral stream dazzle Mind maps fusiform gyrus twinkle Brainstorming lingual gyrus shimmer Ideation calcarine sulcus glint Concept development parieto-occipital sulcus flash Innovation retrosplenial cortex blaze Creativity cuneate nucleus flare Problem-solving pulvinar flicker Critical thinking lateral geniculate nucleus beam Decision making magnocellular layer ray Analytical skills parvocellular layer sparkle Logical reasoning koniocellular pathway brilliance Strategic planning optic chiasm shine Systems thinking optic tract dazzle Project management pretectal area twinkle Time management Edinger-Westphal nucleus shimmer Risk assessment superior colliculus glint Resource allocation inferior colliculus flash Cost-benefit analysis brachium blaze Budgeting accessory optic system flare Forecasting medial longitudinal fasciculus flicker Financial modeling vestibulo-ocular reflex beam Market research optokinetic reflex ray Competitive intelligence smooth pursuit sparkle SWOT analysis saccadic eye movement brilliance PESTLE analysis microsaccades shine Porter&#39;s Five Forces fixational eye movements dazzle Business strategy near triad twinkle Value proposition pupillary light reflex shimmer Customer segmentation consensual response glint Positioning accommodation reflex flash Branding blink reflex blaze Marketing mix corneal reflex flare Product lifecycle doll’s head maneuver flicker Pricing strategies optokinetic nystagmus beam Distribution channels gaze stabilization ray Promotion tactics head impulse test sparkle Sales funnel caloric stimulation brilliance Lead generation rotational chair test shine Customer relationship management vestibular evoked myogenic potentials dazzle Account management video head impulse test twinkle Key account management dynamic visual acuity shimmer Channel partner management oscillopsia glint Supply chain management anisometropia flash Inventory control amblyopia blaze Logistics esotropia flare Demand forecasting exotropia flicker Procurement hypertropia beam Vendor selection hypotropia ray Supplier relationship management cyclotropia sparkle Contract negotiation phorias brilliance Outsourcing tropias shine Offshoring heterophoria dazzle Nearshoring hyperphoria twinkle Reshoring hypophoria shimmer Insourcing latent strabismus glint Crowdsourcing manifest strabismus flash Open innovation intermittent exotropia blaze Closed innovation constant esotropia flare Research &amp; development alternating esotropia flicker Product development microtropia beam New product introduction consecutive exotropia ray Product improvement sensory adaptation sparkle Process improvement motor fusion brilliance Quality assurance sensory fusion shine Quality control binocular summation dazzle Six Sigma stereoblindness twinkle Lean manufacturing ambilateral suppression shimmer Total Quality Management panoramic vision glint Continuous improvement tunnel vision flash Kaizen night blindness blaze Just-in-time production color blindness flare Kanban red-green color blindness flicker Agile manufacturing blue-yellow color blindness beam Flexible manufacturing monochromacy ray Mass customization dichromacy sparkle Smart manufacturing anomalous trichromacy brilliance Industry revolution protanomaly shine Industrial automation deuteranomaly dazzle Internet of Things tritanomaly twinkle Cyber-physical systems achromatopsia shimmer Digital twins rod monochromacy glint Predictive maintenance cone monochromacy flash Condition monitoring scotopic vision blaze Remote monitoring photopic vision flare Real-time data mesopic vision flicker Data analytics Purkinje shift beam Big data photoreceptor cells ray Machine-to-machine communication rods &amp; cones sparkle Edge computing bipolar cells brilliance Fog computing horizontal cells shine Cloud computing amacrine cells dazzle Distributed ledger technology ganglion cells twinkle Blockchain axonal transport shimmer Cryptography dendrites glint Encryption synapses flash Decryption neurotransmitters blaze Public key infrastructure action potential flare Private key propagation speed flicker Digital signature saltatory conduction beam Hash function nodes &amp; internodes ray Hash table Ranvier nodes sprinkle Message digest Schwann cells brightness Certificate authority oligodendrocytes radiance Trust anchor astrocytes glow Root certificate microglial cells brilliancy Intermediate certificate ependymal cells sheen Revocation list blood-brain barrier glitter Online Certificate Status Protocol cerebrospinal fluid luminance Transport Layer Security meninges effulgence Secure Socket Layer dura mater incandescence HTTPS arachnoid mater phosphorescence HTTP/2 pia mater fluorescence QUIC cranial nerves luminescence SPDY spinal cord irradiation WebSockets brainstem illumination RESTful API cerebellum gleam GraphQL diencephalon spark SOAP thalamus scintillation XML hypothalamus luminesce JSON epithalamus irradiant AJAX subthalamus radiant Fetch basal ganglia brilliant Promise limbic system resplendent Event loop hippocampus glowing Asynchronous processing amygdala blazing Callback functions fornix shining Closure mammillary bodies radiant Generator anterior commissure luminous Iterator posterior commissure incandescent Observer pineal gland phosphorescent Publisher-subscriber habenula fluorescent Singleton globose nucleus lustrous Factory emboliform nucleus bright Prototype dentate nucleus vivid Decorator fastigial nucleus shimmering Adapter cerebellar peduncles sparkling Composite pontine nuclei aglow Strategy raphe nuclei illustrious Command reticular formation dazzling Chain of responsibility locus coeruleus beaming State periventricular gray matter streaming Template substantia nigra glaring Visitor red nucleus luminous Mediator crus cerebri intense Memento tegmentum fiery Proxy tectum burning Flyweight corpora quadrigemina ablaze Bridge cerebral aqueduct incandescent Builder fourth ventricle radiant Abstract factory median eminence shiny Dependency injection pituitary stalk glossy Inversion of control tuberal region polished Aspect-oriented programming infundibulum sleek Cross-cutting concerns neurohypophysis trim Join points adenohypophysis neat Pointcuts pars distalis tidy Weaving pars intermedia orderly Advice pars tuberalis systematic Interceptors pars nervosa methodical Filters hypothalamohypophyseal tract organized Middleware supraoptic nuclei arranged Service-oriented architecture paraventricular nuclei structured Microservices arcuate nuclei formulated Containerization ventromedial hypothalamic nucleus devised Orchestration dorsomedial hypothalamic nucleus constructed Kubernetes lateral hypothalamic area assembled Docker preoptic area built Swarm suprachiasmatic nuclei crafted Mesos anterior hypothalamic area fabricated Nomad posterior hypothalamic area manufactured Consul periventricular zone engineered Vault median eminence created Terraform tuberal region developed Ansible infundibulum produced Puppet neurohypophysis made Chef adenohypophysis fashioned SaltStack pars distalis formed Jenkins pars intermedia shaped Travis CI pars tuberalis molded CircleCI pars nervosa sculptured Bamboo supraoptic nuclei hewn GitLab CI/CD paraventricular nuclei carved Bitbucket Pipelines arcuate nuclei etched Azure DevOps ventromedial hypothalamic nucleus engraved AWS CodePipeline dorsomedial hypothalamic nucleus embossed Google Cloud Build lateral hypothalamic area cast IBM Cloud Continuous Delivery preoptic area forged Heroku Pipelines suprachiasmatic nucleimold.</p>
