Specifications

Rated Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 230 VAC	25 kA
Rated Short Circuit Breaking Capacity (Icu), acc. to AS/NZS 60947-2 at 400 VAC	15 kA

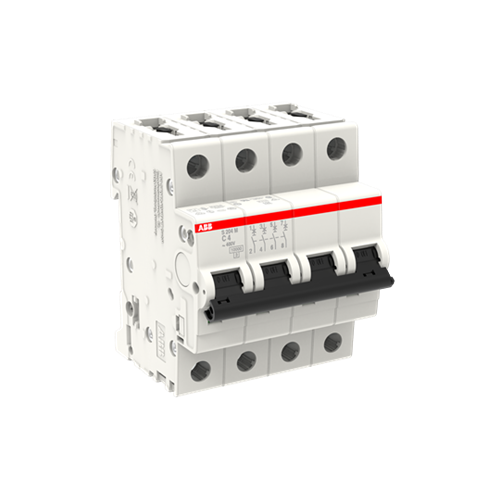

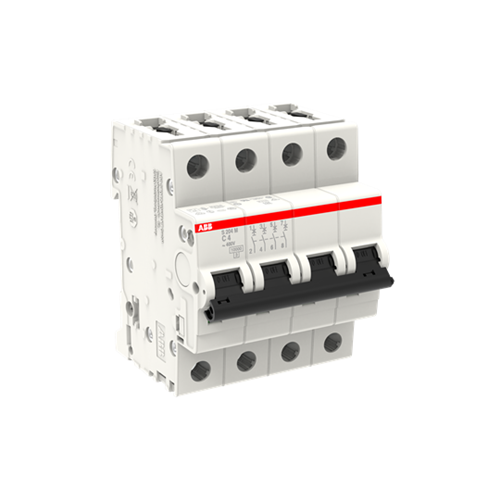

Product Type	Miniature circuit breaker (MCB)
Brand	ABB
Series	S200M
Application	Overload and short-circuit protection for residential, commercial and industrial AC installations
Electrical Endurance	20,000 AC cycles
No. of Poles (Total)	4P
Rated Cross-Section	10 sq-mm Top, 10 sq-mm Bottom
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	440 V
Power Loss	9.6 W total; 3.2 W/pole
Rated Current	4 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	10 kA
Rated Voltage	400 V AC
Trip Curve	C
Terminal Type	Failsafe bi-directional cylinder-lift screw terminals
Cable Cross Section	35 sq-mm Top, 35 sq-mm Bottom
Conductor Cross Section Flexible	0.75–25 mm² flexible (with/without ferrule)
Conductor Cross Section Solid Core	0.75–35 mm² rigid/stranded
Housing Colour	RAL 7035 Grey
Housing Material	Insulation Group II, RAL 7035
Mechanical Endurance	20,000 cycles
Mounting Type	DIN Rail
Tightening Torque	2.8 N-m
Depth	69 mm
Height	88 mm
Weight	0.5 kg
Width	70 mm
Width in No. of Modular Spacing	4
Pole Width	17.5 mm
Rated Surrounding Temperature Without Derating	30 °C
Pollution Degree	3
Storage Temperature	-40 to +70 °C
Operating Temperature	-25 to +55 °C
IP Rating	IP20; IP40 in enclosure with cover
Standards and Approvals	IEC/EN 60898-1; IEC/EN 60947-2
