Specifications

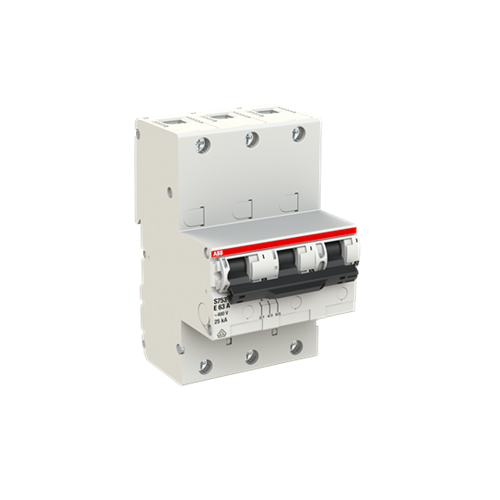

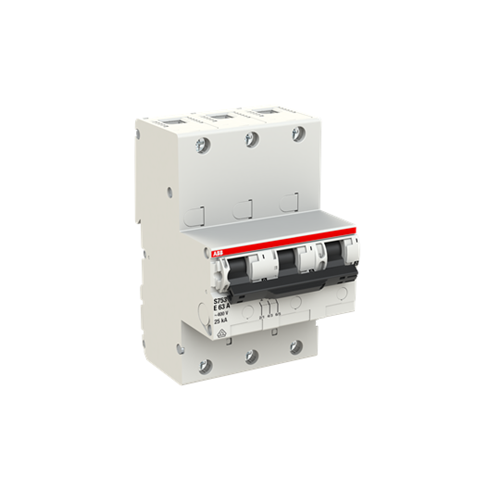

Product Type	Selective Main Miniature Circuit Breaker
Brand	ABB
Series	S750DR
Collection	S750DR
Curve Type	E
Degree of Protection	IP20/IP40
Depth	96 mm
Height	130 mm
Impulse Voltage	6 kV
Mounting Type	DIN Rail
Number of Poles	3
Operational Temperature	-25 to 55 deg C
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 VAC
Rated Short Circuit Current	25 kA
Rated Voltage	400/415 VAC
Terminal Type	Screw Clamp
Tightening Torque	2.5-3 N-m
Trip Curve	E Curve
Width	81 mm
