Specifications

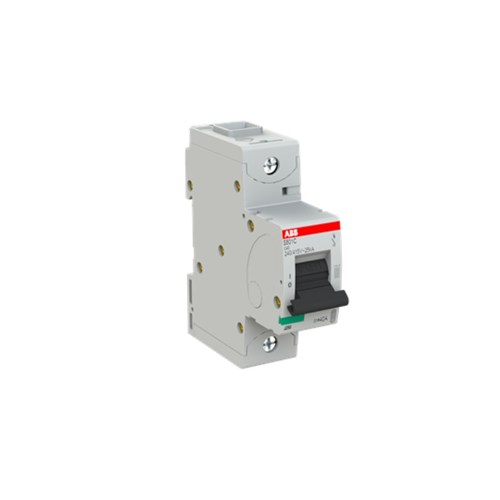

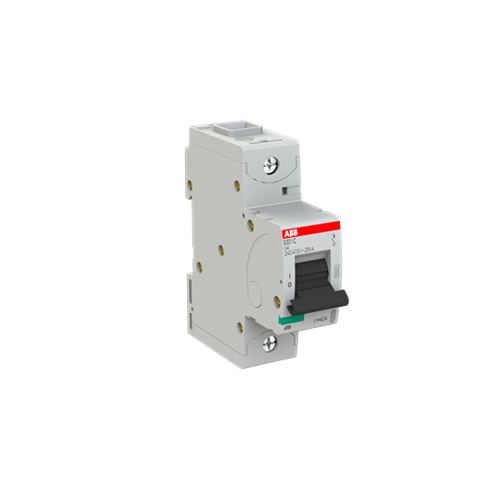

Product Type	High Performance Miniature Circuit Breaker
Brand	ABB
Series	S800C
Application	Commercial and Industrial
Cable Cross Section	50 sq-mm Top, 50 sq-mm Bottom
Collection	S800C
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	82.5 mm
Height	95 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation group I, RAL 7035
Impulse Voltage	8 kV
Mounting Type	DIN Rail
Number of Poles	1
Pole Width	27 mm
Power Loss	3.7 W
Rated Current	40 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	25 kA
Rated Voltage	230/400 VAC
Standards and Approvals	AS/NZS 60898-1, AS/NZS 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	3.5 N-m
Trip Curve	C Curve
Width	27 mm
