Specifications

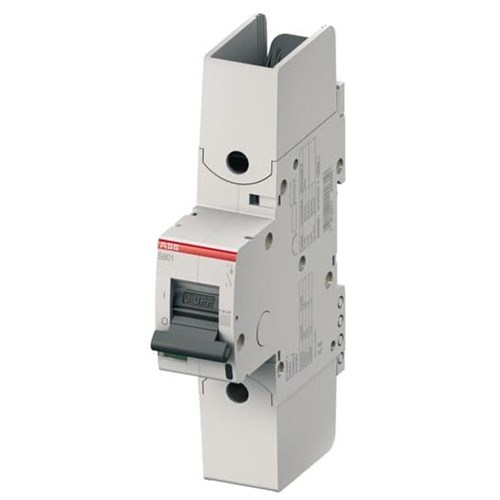

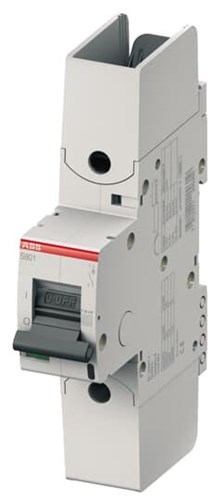

Product Type	High Performance Miniature Circuit Breaker
Brand	ABB
Series	S800HV
Application	Commercial and Industrial
Cable Cross Section	50 sq-mm Top, 50 sq-mm Bottom
Collection	S800HV
Current Limiting Class	3
Curve Type	K
Degree of Pollution	IP2
Degree of Protection	IP20
Depth	82.5 mm
Height	142 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation Group I, RAL 7035
Impulse Voltage	8 kV
Mounting Type	DIN Rail
Number of Poles	1
Number of Protected Poles	1
Operational Temperature	-25 deg C
Overvoltage Category	3
Pole Width	27 mm
Power Loss	3.1 W
Rated Current	16 A
Rated Frequency	50 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Short Circuit Current	4 kA
Rated Voltage	580 VAC, 1000 VAC
Release Type	K
Standards and Approvals	AS/NZS 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	3.5 N-m
Trip Curve	K Curve
Width	27 mm
