Specifications

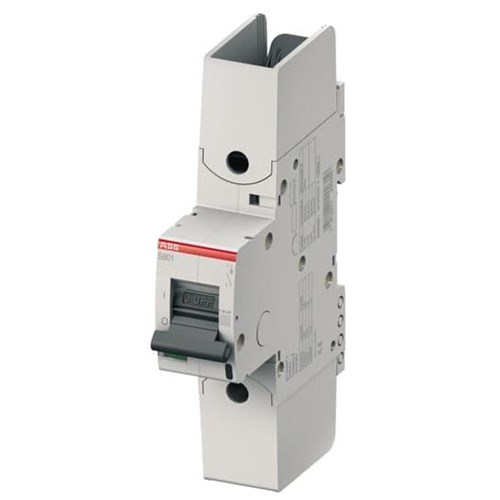

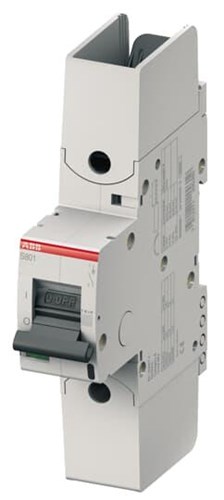

Product Type	High Performance Miniature Circuit Breaker
Brand	ABB
Series	S800HV
Application	Commercial and Industrial
Over Voltage Category	3
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	1000 V
Power Loss	4.3 W
Rated Current	25 A
Rated Frequency	50 Hz
Rated Short Circuit Current	4 kA
Rated Voltage	580 VAC, 1000 VAC
Trip Curve	K
Over Current Limiting Factor	3
Terminal Type	Screw Clamp
Cable Cross Section	50 sq-mm Top, 50 sq-mm Bottom
Housing Colour	RAL 7035 Grey
Housing Material	Insulation Group I, RAL 7035
Mounting Type	DIN Rail
Tightening Torque	3.5 N-m
Depth	82.5 mm
Height	142 mm
Width	27 mm
Pole Width	27 mm
Pollution Degree	2
Operating Temperature	-25 deg C
IP Rating	IP20
Standards and Approvals	AS/NZS 60947-2, UL 1077
