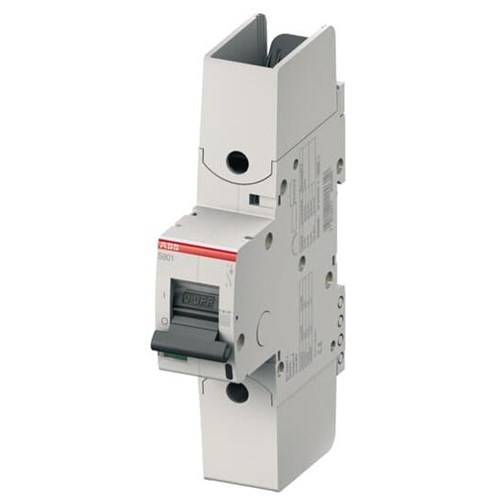

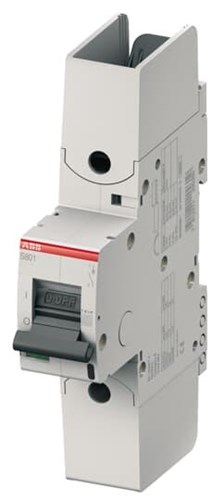

ABB S801HVK6 High Performance Miniature Circuit Breaker 4 kA at 1000VAC 1-P 6A 580/1000VAC K-Curve

Product Code: S801HVK6

  • Rated for 6 A current and 580/1000 VAC voltage
  • High breaking capacity of 4kA at 1000 VAC
  • Compact size: 27 mm width, IP20 protection
  • Screw clamp terminals support up to 50 sq-mm cable
  • Complies with AS/NZS 60947-2, UL 1077 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type High Performance Circuit breaker
Brand ABB
Series S800HV
Application Commercial and Industrial
Cable Cross Section 50 sq-mm Top, 50 sq-mm Bottom
Collection S800HV
Current Limiting Class 3
Curve Type K
Degree of Pollution IP2
Degree of Protection IP20
Depth 82.5 mm
Height 142 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group I, RAL 7035
Impulse Voltage 8 kV
Mounting Type DIN Rail
Number of Poles 1
Number of Protected Poles 1
Operational Temperature -25 deg C
Overvoltage Category 3
Pole Width 27 mm
Power Loss 1.8 W
Rated Current 6 A
Rated Frequency 50 Hz
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated Short Circuit Current 4 kA
Rated Voltage 580 VAC, 1000 VAC
Release Type K
Standards and Approvals AS/NZS 60947-2, UL 1077
Terminal Type Screw Clamp
Tightening Torque 3.5 N-m
Trip Curve K Curve
Width 27 mm

Description

<p>The S800HV series MCB is a robust and reliable miniature circuit breaker designed to meet the demanding needs of commercial and industrial applications. With a rated current of 6 A, it ensures precise protection against overloads and short circuits, making it an ideal choice for safeguarding electrical systems.</p><p>This MCB offers impressive electrical specifications, including a rated impulse withstand voltage of 8 kV and a rated insulation voltage of 1000 V. It operates efficiently across two voltage levels—580 VAC and 1000 VAC—providing flexibility in various installations. The breaking capacity stands at 4 kA at 1000 VAC, ensuring that it can handle significant fault conditions safely.</p><p>Designed with durability in mind, the S800HV features a single pole configuration with IP20 degree of protection, making it suitable for environments where basic protection against solid objects is sufficient. The device&amp;#39;s housing is finished in RAL 7035 grey, providing a neutral aesthetic that blends seamlessly into most settings.</p><p>Installation is straightforward thanks to its screw clamp terminal type which supports cable cross sections up to 50 sq-mm on both top and bottom connections. This allows for secure wiring while maintaining efficient conductivity. The tightening torque specification of 3.5 N-m ensures that connections remain firm over time.</p><p>The physical dimensions are compact yet substantial—with a width of 27 mm, height of 142 mm, and depth of 82.5 mm—allowing for easy integration into existing panels without occupying excessive space on the DIN rail mounting system.</p><p>Safety standards are met with compliance to AS/NZS 60947-2 and UL 1077 certifications, offering peace of mind regarding quality assurance and operational safety within Australian markets as well as internationally recognized benchmarks.</p><p>With an operational temperature range from -25&amp;#176;C upwards, this MCB remains reliable under varying environmental conditions typical in many industrial settings. Its power loss rating is low at just 1.8 W which contributes to overall energy efficiency within your system design considerations.</p><p>The product’s release type K curve provides specific tripping characteristics suited for particular load types often encountered in industrial applications such as motors or transformers where higher startup currents are expected but should not cause nuisance tripping during normal operation cycles.</p><p>Overall when considering factors like overvoltage category (3), degree of pollution (IP2), short circuit capacity (2.5 kA), along with adherence to stringent standards; this MCB from the S800HV collection represents an excellent balance between performance reliability cost-effectiveness—all critical aspects when selecting components tailored specifically towards commercial/industrial use cases requiring dependable electrical infrastructure solutions.</p>
