Specifications

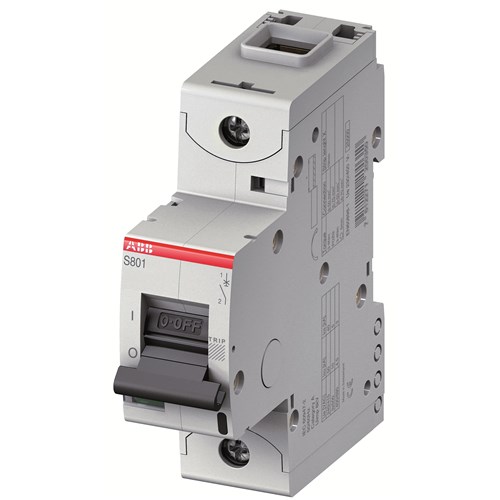

Product Type	High Performance Miniature Circuit Breaker
Brand	ABB
Series	S800S
Electrical Endurance	10000 Cycles
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	690 V
Power Loss	1.5 W
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	50 kA
Rated Voltage	230/400 VAC
Trip Curve	B
Terminal Type	Screw Clamp
Housing Colour	RAL 7035 Grey
Tightening Torque	3.5 N-m
Depth	82.5 mm
Height	95 mm
Width	24 mm
Pollution Degree	3
Operating Temperature	-25 to 60 deg C Operation, -40 to 70 deg C Storage
IP Rating	IP20
Standards and Approvals	IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
