Specifications

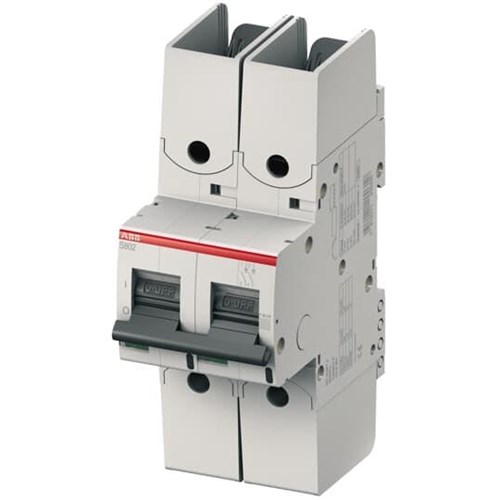

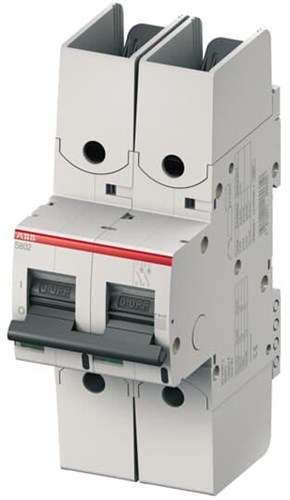

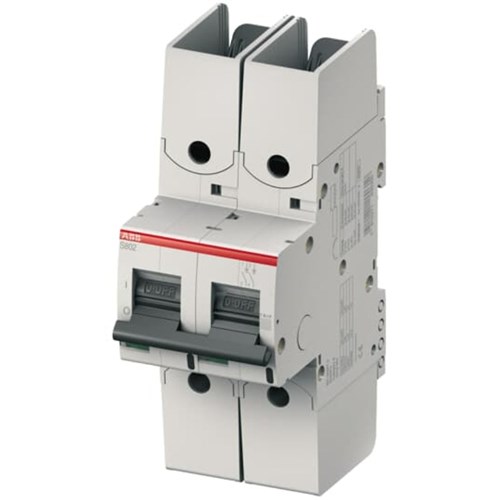

Product Type	High Performance Miniature Circuit Breaker
Brand	ABB
Series	S800HV
Ambient Temperature	-25 to 60 deg C Operation, -40 to 70 deg C Storage
Collection	S800HV
Curve Type	K
Degree of Pollution	IP2
Degree of Protection	IP20
Depth	82.5 mm
Height	142 mm
Housing Colour	RAL 7035 Grey
Impulse Voltage	8 kV
Number of Poles	2
Operational Temperature	-25 to 60 deg C
Rated Current	1 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Short Circuit Current	4 kA
Standards and Approvals	IEC/EN 60947-2, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	3.5 N-m
Trip Curve	K Curve
Width	54 mm
