Specifications

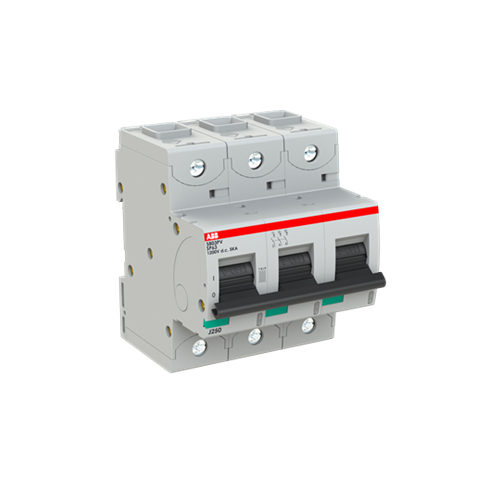

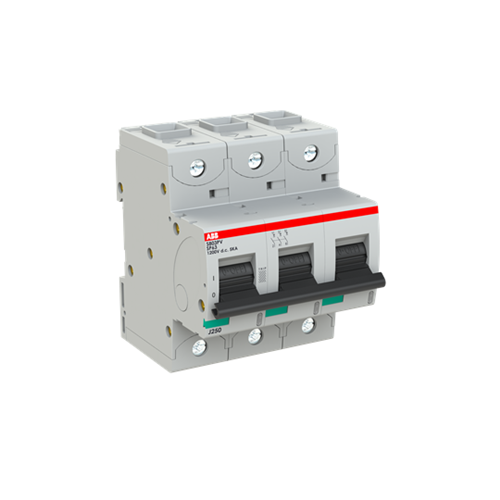

Product Type	High Performance Miniature Circuit Breaker
Brand	ABB
Series	S800PVS
Collection	S800PV
Current Limiting Class	3
Curve Type	B
Degree of Pollution	IP2
Degree of Protection	IP20
Depth	82.5 mm
Height	95 mm
Impulse Voltage	8 kV
Number of Poles	3
Number of Protected Poles	3
Operational Temperature	-25 to 60 deg C
Overvoltage Category	3
Power Loss	19.2 W
Rated Current	63 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1200 VDC
Rated Short Circuit Current	5 kA
Rated Voltage	1200 VDC
Release Type	B
Trip Curve	B Curve
Width	81 mm
