Specifications

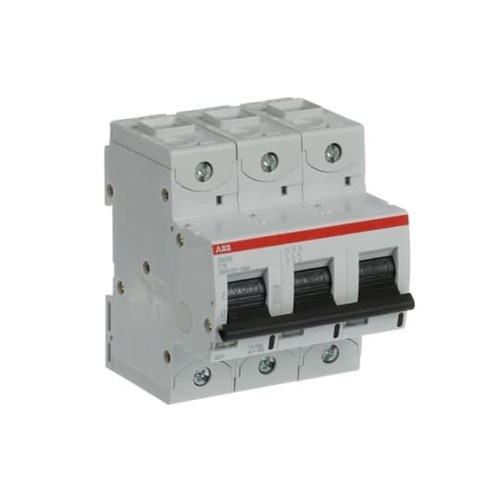

Product Type	High Performance Miniature Circuit Breaker
Brand	ABB
Series	S800S
Application	Commercial and Industrial
Electrical Endurance	10000 Cycles
Over Voltage Category	4
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	690 V
Power Loss	4.5 W
Rated Current	10 A
Rated Frequency	50 Hz
Rated Short Circuit Current	50 kA
Rated Voltage	400/690 VAC
Trip Curve	C
Over Current Limiting Factor	3
Terminal Type	Screw Clamp
Cable Cross Section	50 sq-mm Top, 50 sq-mm Bottom
Housing Colour	RAL 7035 Grey
Housing Material	Insulation Group I, RAL 7035
Mounting Type	DIN Rail
Tightening Torque	3.5 N-m
Depth	82.5 mm
Height	95 mm
Width	81 mm
Pole Width	27 mm
Pollution Degree	3
Operating Temperature	-25 deg C
IP Rating	IP20
Standards and Approvals	IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
