Specifications

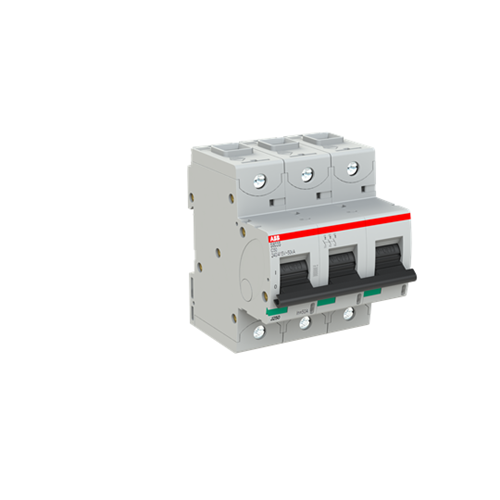

Product Type	High Performance Miniature Circuit Breaker
Brand	ABB
Series	S800S
Application	Commercial and Industrial
Cable Cross Section	50 sq-mm Top, 50 sq-mm Bottom
Collection	S800S
Current Limiting Class	3
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	82.5 mm
Electrical Durability	6000 Cycles
Height	95 mm
Housing Colour	RAL 7035 Grey
Housing Material	Insulation Group I, RAL 7035
Impulse Voltage	8 kV
Mounting Type	DIN Rail
Number of Poles	3
Number of Protected Poles	3
Operational Temperature	-25 deg C
Overvoltage Category	4
Pole Width	27 mm
Power Loss	12.9 W
Rated Current	50 A
Rated Frequency	50 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	690 V
Rated Short Circuit Current	50 kA
Rated Voltage	400/690 VAC
Release Type	C
Standards and Approvals	IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	3.5 N-m
Trip Curve	C Curve
Width	81 mm
