Specifications

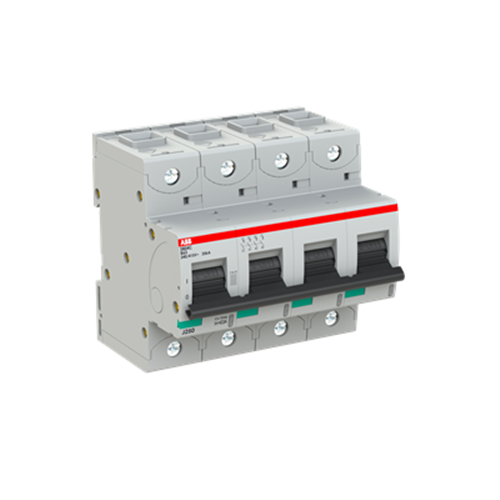

Product Type	High Performance Miniature Circuit Breaker
Brand	ABB
Series	S800C
Curve Type	B
Electrical Durability	6000 Cycles
Housing Colour	RAL 7035 Grey
Number of Poles	4
Power Loss	25.6 W
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	25 kA
Rated Voltage	400/415 VAC
Standards and Approvals	IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	3.5 N-m
