Specifications

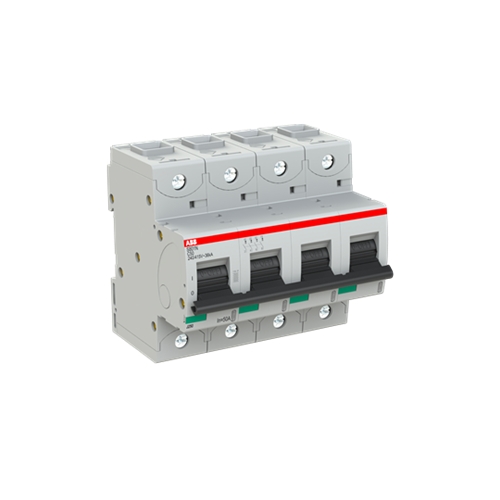

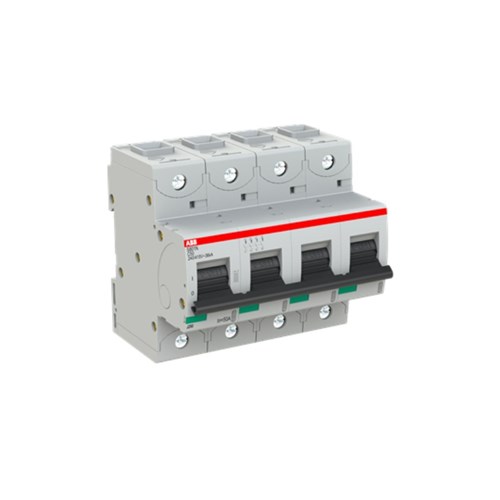

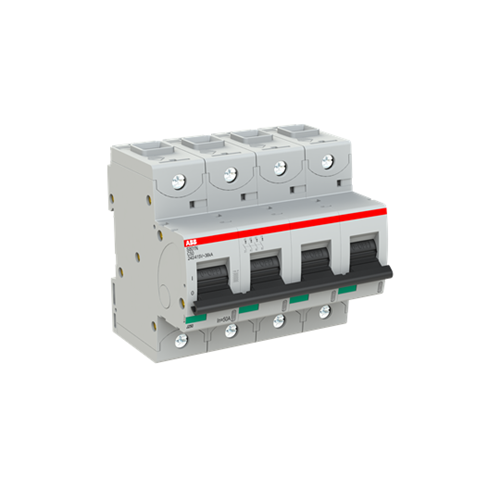

Product Type	High Performance Miniature Circuit Breaker
Brand	ABB
Series	S800N
Application	Commercial and Industrial
Rated Impulse Withstand Voltage (Uimp)	8 kV
Rated Insulation Voltage (Ui)	690 V
Power Loss	4.3 W
Rated Current	50 A
Rated Frequency	50/60 Hz
Rated Short Circuit Current	36 kA
Rated Voltage	400/690 VAC
Trip Curve	C
Cable Cross Section	50 sq-mm Top, 50 sq-mm Bottom
Housing Colour	RAL 7035 Grey
Housing Material	Insulation group I, RAL 7035
Mounting Type	DIN Rail
Depth	82.5 mm
Height	95 mm
Width	106 mm
Pole Width	27 mm
Pollution Degree	3
IP Rating	IP20
Standards and Approvals	IEC/EN 60947-2, IEC/EN 60898-1
