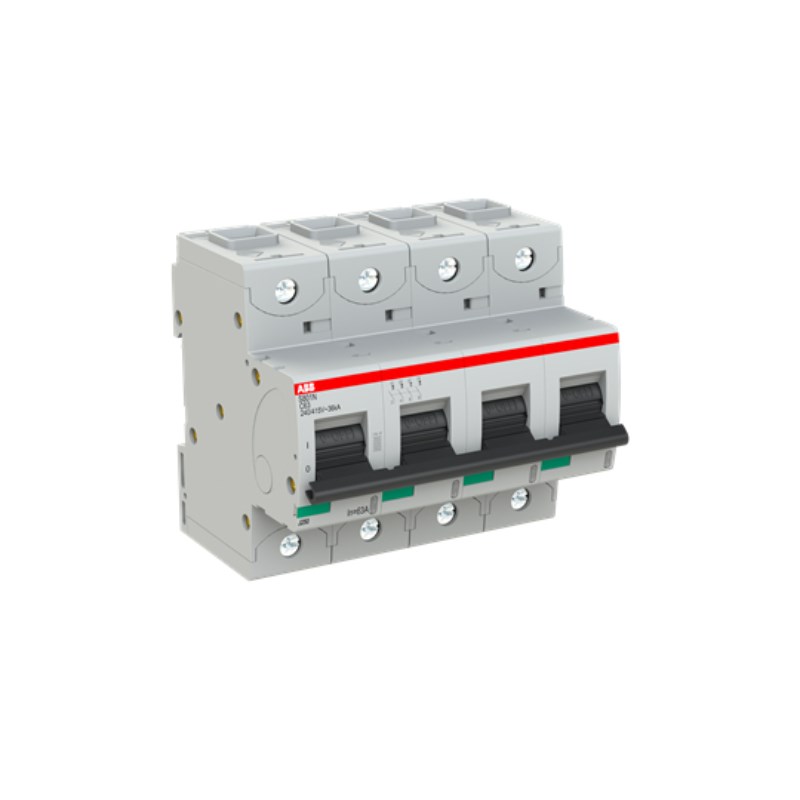

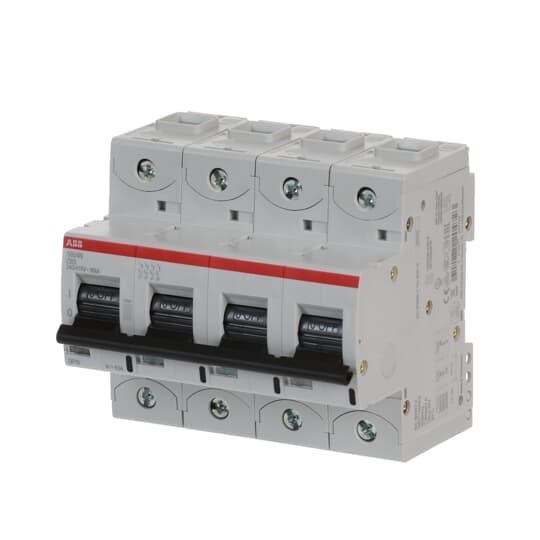

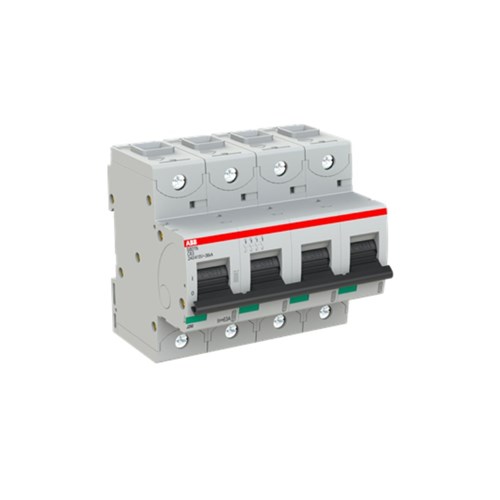

<p>The S800N series MCB (Miniature Circuit Breaker) is designed for discerning commercial and industrial users who demand reliability and performance. This robust device offers a rated current of 63 A, making it suitable for a range of applications where dependable circuit protection is paramount.</p><p>Engineered to withstand high impulse voltages, the S800N boasts an impressive rated impulse withstand voltage of 8 kV. It operates efficiently with a rated insulation voltage of 690 V and supports a dual-rated voltage configuration of 400/690 VAC. The power loss is minimal at just 6.4 W, ensuring efficient energy management.</p><p>This model features four poles, providing comprehensive coverage for complex electrical systems. With a breaking capacity of 36 kA at 400 VAC, it stands as a formidable safeguard against potential overloads or short circuits. It adheres to the stringent standards set by IEC/EN 60947-2 and IEC/EN 60898-1, assuring compliance with international safety regulations.</p><p>Measuring at a width of 106 mm, height of 95 mm, and depth of 82.5 mm, this MCB fits seamlessly into existing setups without demanding excessive space. Its IP20 degree of protection ensures that it remains secure from solid objects larger than 12 mm in diameter while maintaining operational integrity in typical environments.</p><p>Designed for versatility in mounting options, the S800N can be easily installed on DIN rails—a standard choice in industrial settings—facilitating quick integration into control panels or distribution boards.</p><p>The product&#39;s technical specifications include an operating frequency range between 50/60 Hz and support for cable cross sections up to 50 sq-mm both top and bottom connections. With its C curve type characteristic, it provides optimal tripping response suitable for protecting general-purpose loads like lighting circuits or low-inductive appliances.</p><p>Finished in RAL 7035 grey housing color, this MCB not only performs well but also maintains aesthetic consistency within your electrical installations. Its pole width measures at a compact yet effective dimension of just 27 mm per pole.</p><p>In summary, the S800N series MCB delivers reliable performance tailored for commercial and industrial applications where precision engineering meets practical functionality—ensuring your electrical systems are safeguarded with confidence every step along the way.</p>
