Specifications

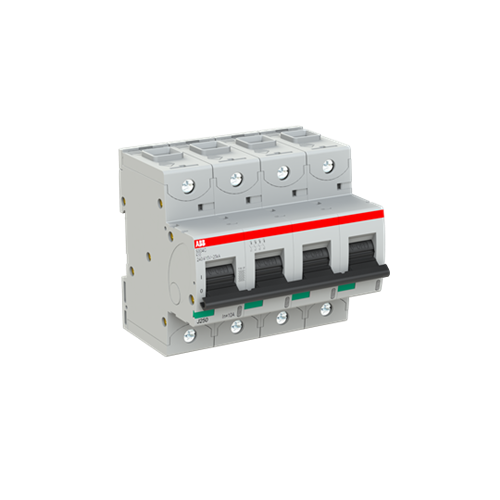

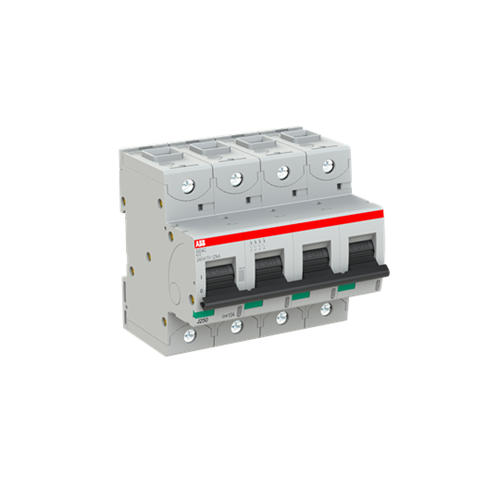

Product Type	High Performance Miniature Circuit Breaker
Brand	ABB
Series	S800S
Ambient Temperature	-25 to 60 deg C
Current Limiting Class	3
Curve Type	K
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	82.5 mm
Electrical Durability	10000 Cycles
Height	95 mm
Impulse Voltage	8 kV
Mounting Type	DIN Rail
Number of Poles	4
Number of Protected Poles	4
Operational Temperature	-25 deg C
Overvoltage Category	4
Power Loss	6 W
Rated Current	10 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	690 V
Rated Short Circuit Current	50 kA
Rated Voltage	400/690 VAC
Release Type	K
Standards and Approvals	IEC/EN 60947-2, IEC/EN 60898-1, UL 1077
Terminal Type	Screw Clamp
Tightening Torque	3.5 N-m
Trip Curve	K Curve
Width	106 mm
