Specifications

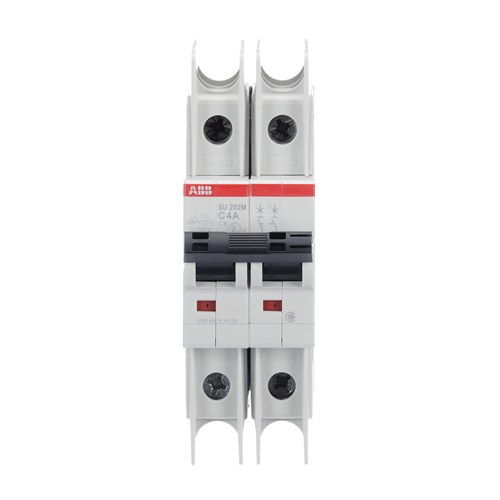

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200MUL
Ambient Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
Curve Type	C
Degree of Pollution	IP3
Degree of Protection	IP20/IP40
Depth	69 mm
Height	111 mm
Housing Colour	RAL 7035 Grey
Number of Poles	2
Power Loss	3.6 W
Power Supply Connection	Arbitrary
Rated Current	4 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Rated Short Circuit Current	10 kA
Rated Voltage	440 V
Standards and Approvals	CSA 22.2 No. 5, IEC/EN 60947-2, UL 489
Terminal Type	Double Clamp
Tightening Torque	2.8 N-m
Width	35 mm
