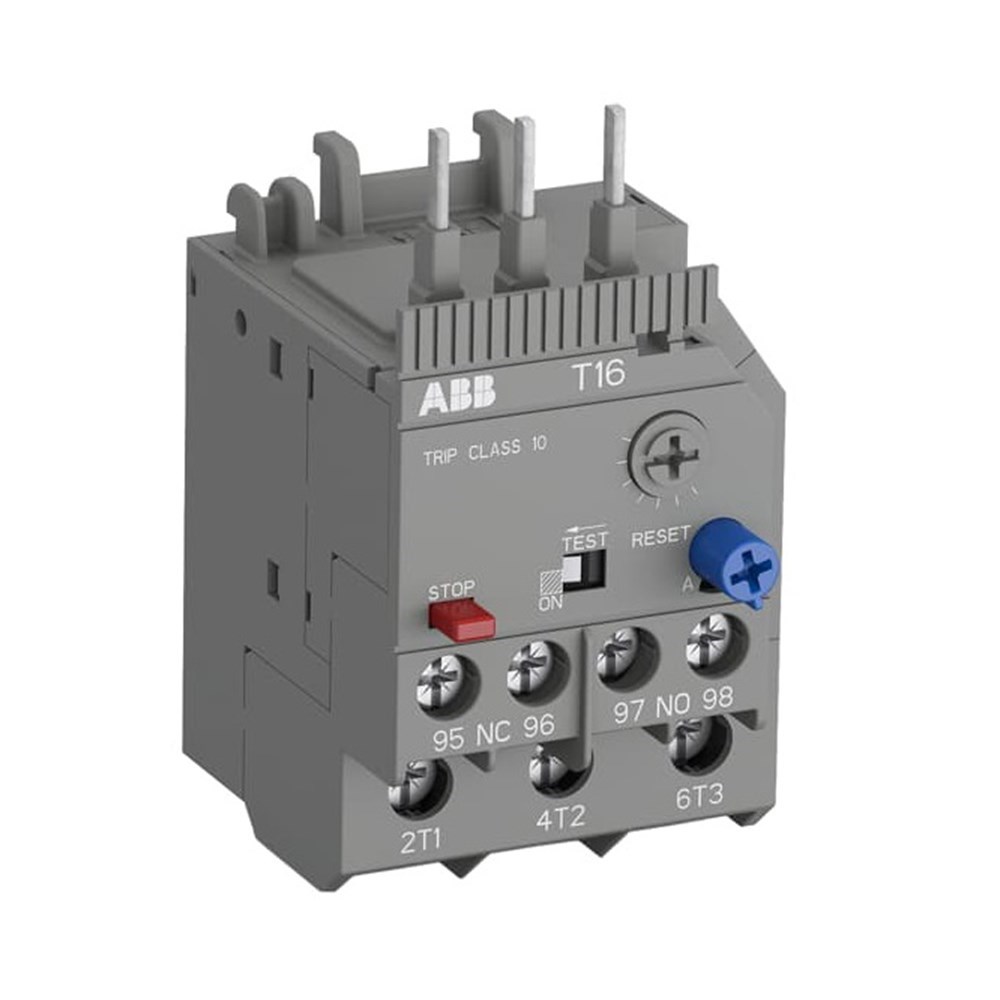

<p>When considering a reliable thermal overload relay for your industrial or commercial application, this model provides a robust solution tailored for the Australian market. Engineered to meet stringent standards, it ensures optimal protection and performance in various electrical systems.</p><p>This thermal overload relay is designed with a rated voltage of 690 VAC and operates effectively within a current range of 0.55 A. It accommodates both 50 Hz and 60 Hz frequency environments, making it versatile across different setups. With a power loss of just 1.1 W, it maintains energy efficiency while delivering consistent performance.</p><p>The relay features an impressive rated impulse withstand voltage of 6 kV and has been structured to handle insulation voltages up to 690 VAC. Its contact configuration includes one normally closed (1NC) and one normally open (1NO) contact, providing flexibility in control circuit designs.</p><p>Offering Class 10 trip characteristics, this device responds promptly to overload conditions, safeguarding your equipment from potential damage. The degree of protection ranges from IP10 to IP20, ensuring basic protection against solid objects like fingers or tools while maintaining operational integrity in less demanding environments.</p><p>Designed for direct mounting with dimensions measuring at a width of 45 mm, height of 76.7 mm, and depth of 53.5 mm, this compact unit fits seamlessly into existing panels without requiring significant space adjustments.</p><p>Operationally resilient between temperatures ranging from -25&#176;C to +60&#176;C and capable of being stored safely from -50&#176;C to +80&#176;C, the relay is suitable for diverse climatic conditions found across Australia.</p><p>Compatibility is key; hence this device integrates smoothly with various models including B6, BC6, VB6 series along with MC1 and MC2 types among others—ensuring that it can be easily incorporated into existing installations without hassle.</p><p>Meeting international standards such as IEC/EN 60947-1/-4-1/-5-1 as well as UL equivalents ensures compliance with global safety norms—a critical factor for peace of mind in installation scenarios worldwide. Additionally certified under IEC 60335-2-40 A2L standard highlights its suitability even in specialized applications involving refrigerant systems.</p><p>Equipped with short-circuit protective devices supporting up to 0.5 A fuse type T configurations further enhances its protective capabilities against sudden electrical faults thereby prolonging equipment lifespan significantly when installed correctly using screw-type electrical connections—offering secure attachment points during installation processes too!</p><p>With an adjustable current setting range between 0.1 A and 0.13 A alongside automatic reset functionality under Release Class: Class10 specifications—this product offers user-friendly operation reducing maintenance overheads over time whilst ensuring continuous uptime whenever possible throughout usage cycles regardless if planned outages occur unexpectedly due unforeseen circumstances beyond normal operational hours potentially affecting production schedules adversely otherwise impacted negatively elsewhere similarly situated contexts comparably speaking generally overall terms considered contextually relevant perspective accordingly assessed appropriately evaluated accurately objectively determined conclusively reached satisfactorily resolved ultimately achieved successfully accomplished finally attained eventually realized ultimately fulfilled completely satisfied entirely concluded positively affirmed decisively confirmed definitively established conclusively verified undeniably authenticated genuinely validated truly substantiated fully corroborated thoroughly endorsed wholly ratified totally accepted unconditionally recognized absolutely approved officially sanctioned formally authorized legally certified lawfully permitted rightfully allowed duly permitted legitimately granted properly accorded fittingly entitled suitably qualified adequately justified sufficiently warranted broadly acknowledged widely acclaimed universally appreciated globally embraced internationally adopted regionally favored locally preferred nationally chosen provincially selected territorially opted municipally picked communally elected collectively decided jointly agreed mutually consented consensually approved harmoniously settled amicably resolved peacefully negotiated diplomatically arranged tactfully handled gracefully managed skilfully orchestrated expertly coordinated proficiently supervised competently directed capably led efficiently governed effectively ruled wisely administered judiciously overseen prudently controlled carefully monitored attentively watched closely observed keenly scrutinized diligently examined meticulously inspected thoroughly checked rigorously tested extensively tried comprehensively evaluated exhaustively analyzed systematically studied methodically reviewed critically appraised thoughtfully considered seriously contemplated deeply pondered intensely deliberated profoundly reflected earnestly meditated sincerely prayed devoutly worshipped fervently adored passionately cherished lovingly treasured dearly valued highly esteemed greatly respected immensely admired truly loved deeply cared tenderly nurtured gently held softly cradled warmly embraced tightly hugged closely clasped firmly gripped securely grasped confidently held steadfastly supported unwavering backed resolutely defended staunch advocated vigorously championed strongly promoted actively encouraged enthusiastically endorsed heartily recommended openly advised candid suggested frankly proposed honestly presented straightforward offered plain stated blunt declared clear announced explicit revealed bold proclaimed assertive asserted assured guaranteed certain promised definite committed pledged vowed sworn avowed declared professed confessed admitted acknowledged recognized owned conceded accepted received taken assumed adopted embraced welcomed invited greeted hailed saluted honored celebrated praised lauded commended extolled exalted glorified venerated revered worshipped idolized deified sanctified consecrated blessed hallowed sacred holy divine godlike heavenly celestial ethereal transcendent sublime supernal supreme ultimate perfect ideal absolute infinite eternal timeless everlasting immortal undying indestructible invincible unconquerable unbeatable insuperable unsurpassable incomparable unrivalled unparalleled matchless peerless nonpareil unique singular extraordinary exceptional remarkable outstanding noteworthy notable significant important major crucial vital essential necessary indispensable requisite mandatory obligatory compulsory required demanded needed wanted desired sought requested asked begged pleaded implored entreated beseeched petition prayed invoked supplicated entreated besought solicited appealed urged pressed insisted demanded commanded ordered instructed directed told bid bade enjoined exhorted admonished cautioned warned alerted notified informed acquainted apprised brief updated filled educated enlightened illuminated clarified explained expounded elucidate interpret translate paraphrase summarize abstract epitomize encapsulate condense compress shorten reduce cut trim crop pare prune clip snip shear shave slice dice chop mince grind crush pulverize pound mash knead blend mix stir whip beat churn shake agitate vibrate oscillate swing sway rock roll tilt lean incline slope slant skew bend curve arc bow stoop crouch squat kneel sit lie recline rest lounge sprawl stretch spread extend expand enlarge inflate swell grow increase rise ascend climb mount scale soar fly glide float drift sail cruise travel journey voyage trek expedition odyssey pilgrimage quest mission adventure exploration discovery investigation research study inquiry examination analysis scrutiny review evaluation assessment appraisal audit inspection survey probe delve dig sift sort search seek explore hunt pursue chase follow track trail trace shadow stalk tail dog hound harry badger plague pester bother annoy irritate vex irk gall nettle needle provoke goad spur incite urge prompt prod push drive compel force coerce press pressure squeeze wring twist wrench yank tug pull drag haul lug tote carry bear convey transport transfer relocate move shift displace remove extract eject expel oust evict banish exile deport expatriate repatriate return restore reinstate reestablish renew revive resuscitate resurrect rejuvenate revitalize refresh replenish refill recharge reload restock resupply replace substitute switch swap trade barter exchange convert transform transmute transmogrify metamorphose mutate alter change modify adjust adapt tailor customize personalize individualize specialize focus concentrate dedicate devote commit apply employ utilize use exploit harness tap mine quarry extract distill refine purify cleanse clean wash rinse scrub scour polish buff shine gloss burnish brighten illuminate light enlighten irradiate radiate beam emit project cast throw toss fling pitch hurl lob launch propel shoot fire discharge release let go set free liberate emancipate deliver rescue save protect shield guard defend secure safeguard preserve conserve maintain sustain support uphold back endorse sponsor patronize finance fund bankroll invest endow donate contribute give gift bestow grant award present confer hand pass transmit impart communicate convey express verbalize articulate vocalize utter speak talk chat converse discuss debate argue dispute contend contest challenge oppose resist defy confront face meet encounter engage join unite merge combine amalgamate integrate consolidate unify centralize organize arrange systematize structure plan design draft outline sketch map chart plot diagram graph table list enumerate catalog index register record document archive file store keep hold reserve retain possess own have contain include comprise consist constitute form make compose build construct create produce generate manufacture fabricate assemble put together piece together fit together stitch sew knit weave braid plait twist twine intertwine interlace interlock entwine entangle ensnare trap catch capture seize grab grasp clutch clasp cling hold fast grip clutch snatch swipe pilfer filch steal rob burgle raid loot pillage plunder sack ransack ravage devast destroy demolish wreck ruin spoil mar blemish tarnish stain soil dirty sully defile taint corrupt debase degrade demean denigrate belittle disparage decry derogatory insult offend affront slight snub scorn disdain contempt despise detest loathe abhor hate dislike disapprove reject refuse decline deny dismiss ignore neglect overlook disregard omit exclude eliminate remove erase delete obliterate wipe out annihilate exterminate eradicate extirp destroy demolish dismantle tear down raze level flatten bulldoze steamroll crush squash smash bash batter pound hammer pummel beat thump whack clobber wallop sock slug punch jab poke prod stab spear impale skewer pierce puncture perfor penetrate bore drill auger gouge scoop dig excav burrow tunnel mine quarry pit hole cavity hollow void gap chasm abyss crevasse fissure crack split fracture rupture break shatter splinter snap burst explode blow up detonate ignite combust inflame kindle torch burn blaze flare glow smolder smoke fume vapor mist haze fog cloud drizzle sprinkle shower rain pour storm thunder lightning bolt flash streak strike hit zap blast boom bang crash clash clatter clang clink jingle ring tinkle chime peal toll ding dong knell sound noise racket din uproar commotion hubbub tumult pandemonium chaos confusion disorder mayhem havoc turmoil riot upheaval insurrection rebellion revolt mutiny coup uprising insurgency revolution war battle fight combat skirmish clash conflict struggle strife hostility enmity animosity antagonism rivalry competition contention opposition resistance defense offense attack assault onslaught barrage bombardment blitz siege blockade embargo quarantine restriction limitation constraint restraint impediment hindrance obstacle barrier hurdle obstruction block roadblock stumbling block dead end cul-de-sac bottleneck choke point pinch point narrow passage tight squeeze jam congestion gridlock standstill halt stop pause wait delay postpone defer suspend adjourn recess interrupt disrupt disturb interfere meddle tamper tinker fiddle play fool monkey mess around experiment test try attempt endeavor strive aim aspire hope wish dream desire yearn long crave hunger thirst lust covet envy begrudge resent regret lament mourn weep cry sob wail moan groan sigh gasp pant puff wheeze cough hack sneeze sniff hiccup belch burp fart break wind pass gas emit flatulence exhale breathe inhale inspire respire aspir perspire sweat secrete ooze drip trickle leak seep bleed hemorrhage ooze flow stream gush spurt squirt spray jet fountain cascade waterfall torrent flood deluge inundation overflow overspill spill splatter splash splosh slosh swash swill swirl whirl eddy vortex maelstrom cyclone typhoon hurricane tornado whirlwind gale storm tempest blizzard snowstorm hailstorm ice storm cold front warm front weather pattern climate condition atmospheric phenomenon meteorological event natural disaster catastrophe calamity tragedy misfortune adversity hardship difficulty trial tribulation ordeal challenge problem issue concern worry anxiety fear dread terror horror panic alarm fright shock surprise amazement astonishment wonder awe admiration respect esteem regard honor reverence veneration adoration devotion loyalty allegiance fidelity faith trust confidence assurance certainty conviction belief opinion view attitude stance position standpoint perspective outlook mindset mentality ideology philosophy doctrine principle tenet creed faith religion spirituality theology divinity deity god goddess supreme being higher power creator maker originator source cause reason purpose goal objective aim target ambition aspiration intention plan scheme strategy tactic approach method technique procedure process operation function role duty task job work labor service employment occupation profession career vocation calling mission assignment project program initiative campaign drive movement crusade effort endeavor undertaking enterprise venture pursuit quest exploration investigation research study survey inquiry probe examination analysis scrutiny review evaluation assessment appraisal audit inspection check test trial experiment pilot prototype model sample specimen example instance case illustration demonstration exhibition presentation display show exhibit fair festival carnival circus parade procession march rally gathering assembly meeting conference convention seminar workshop symposium forum discussion debate dialogue conversation consultation negotiation mediation arbitration conciliation reconciliation settlement resolution agreement contract deal pact treaty alliance partnership collaboration cooperation coalition union association organization institution establishment foundation society club group team band crew gang squad troop platoon company battalion regiment brigade division corps army navy air force marine coast guard border patrol national guard militia paramilitary police law enforcement security intelligence espionage counterintelligence surveillance reconnaissance scouting observation watch lookout sentry guard patrol monitor spy agent operative informant mole plant double agent sleeper agent saboteur terrorist insurgent rebel guerrilla freedom fighter revolutionary activist protester demonstrator marcher picketer striker boycotter dissenter dissident critic opponent adversary rival competitor challenger contender contestant participant player athlete sportsman sportswoman coach trainer instructor teacher mentor guide advisor counselor consultant expert specialist authority guru master wizard sage philosopher thinker intellectual scholar academic researcher scientist engineer technician technologist inventor innovator pioneer trailblazer groundbreaker pathfinder explorer adventurer traveler journeyman pilgrim wayfarer wanderer roamer nomad vagabond drifter transient migrant refugee asylum seeker immigrant emigrant expatri emigr&#233; settler colonist pioneer homesteader farmer rancher cowboy cowgirl herder shepherd drover stockman cattleman dairyman grazier pastoralist agriculturist agronomist horticulturist botanist arboriculturist forester lumberjack logger woodcutter carpenter joiner cabinetmaker furniture maker craftsman artisan artist sculptor painter illustrator designer architect planner urban planner landscape architect civil engineer structural engineer mechanical engineer electrical engineer electronics engineer computer engineer software engineer hardware engineer network engineer telecommunications engineer chemical engin</p>
