Specifications

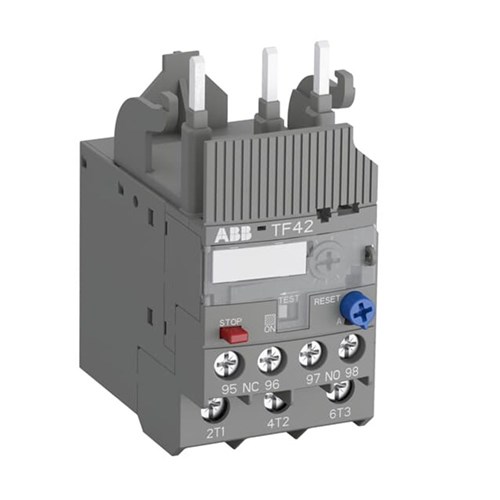

Product Type	Thermal Overload Relays
Brand	ABB
Suitable Product Range	AF09 AF12 AF16 AF26 AF30 AF38
Max. Operational Voltage	Main Circuit 600 V AC
Suitable for Single Phase / Three Phase	Yes
Thermal Current Setting Range	0.23 ... 0.31 A
Contact Configuration	1NC+1NO
Current Setting Range	0.23-0.31 A
Trip Class	10
Depth	70.5 mm
Height	88.3 mm
Weight	0.13 kg
Width	45 mm
Pollution Degree	3
IP Rating	IP10, IP20
Standards and Approvals	IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L
