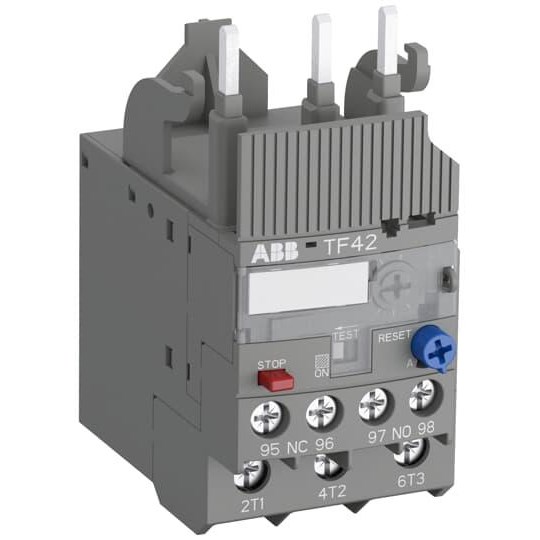

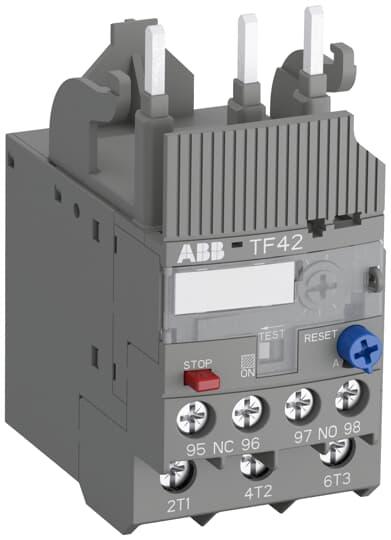

ABB TF42-29 Thermal Overload Relay 24-29A 690VAC 63A Fuse Type gG

Product Code: TF42-29

  • Rated voltage of 690 VAC for robust performance
  • Operates within -25 to 60°C temperature range
  • Direct mounting for easy installation
  • Automatic reset function enhances convenience
  • Compatible with AF09-AF38 contactors
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Thermal Overload Relay
Brand ABB
Contact Configuration 1NC+1NO
Current Setting Range 24-29 A
Degree of Pollution IP3
Degree of Protection IP10, IP20
Depth 70.5 mm
Electrical Connection Screw
Height 88.3 mm
Mounting Type Direct
Number of Auxiliary Change-Over Contacts 1
Number of Poles 3
Operational Temperature -25 to 60 deg C
Power Loss 1.8 W
Rated Current 0.55 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Voltage 690 VAC
Release Class Class 10
Reset Function Automatic
Setting Range 24-29 A
Short Circuit Protective Devices 63 A, Fuse Type gG
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Storage Temperature -50 to 80 deg C
Suitable For Use With AF09-AF38
Trip Class Class 10
Width 45 mm

Description

<p>When selecting a thermal overload relay for industrial or commercial applications, it&amp;#39;s crucial to have a comprehensive understanding of its specifications and capabilities. This particular Thermal Overload Relay is designed to offer reliable protection for your electrical systems. Operating at a rated voltage of 690 VAC and accommodating a current setting range from 24 to 29 A, it ensures that your equipment operates within safe parameters. </p><p>The relay supports both 50 and 60 Hz frequencies, making it versatile across various power systems. It features a power loss of just 1.8 W, which aligns with energy efficiency goals while maintaining operational effectiveness. Additionally, the rated impulse withstand voltage stands at an impressive 6 kV, providing robust protection against transient overvoltages.</p><p>With an insulation voltage also rated at 690 V and contact configuration comprising one normally closed (1NC) and one normally open (1NO) contact, this relay is engineered for dependable performance in diverse conditions. The trip class is classified as Class 10, ensuring timely response to overload situations without unnecessary interruptions.</p><p>In terms of construction and durability, the device offers degrees of protection IP10 and IP20 along with pollution degree IP3 rating—indicating its resilience against dust ingress while being suitable for environments with moderate pollution levels.</p><p>Mounting this relay directly onto compatible devices is straightforward due to its compact dimensions: width of 45 mm, height of 88.3 mm, and depth of 70.5 mm. These measurements make it easy to integrate into existing panels without requiring extensive modifications.</p><p>The operational temperature ranges from -25&amp;#176;C up to +60&amp;#176;C; thus allowing functionality in varied climates or industrial settings where temperature fluctuations are common. For storage purposes when not in use or during transport—temperatures can safely range between -50&amp;#176;C up through +80&amp;#176;C.</p><p>This model pairs seamlessly with AF09-AF38 devices thanks largely due in part by meeting rigorous standards such as IEC/EN60947-1/-4-1/-5-1 alongside UL60947-1/-4-1 certifications plus compliance under IEC60335–2–40A2L guidelines—ensuring adherence not only locally but internationally too!</p><p>For added safety measures especially during potential short circuits—a protective device like fuse type gG rated at maximum capacity (63 A) should be employed accordingly per installation requirements using standard screw connections facilitating ease-of-use upon setup completion whilst maintaining secure connectivity throughout operation cycles long term thereafter via automatic reset function built-in inherently therein granting peace-of-mind assurance ongoingly thereafter indefinitely assuredly so overall conclusively herewith finally now henceforth forthwith thusly ultimately therefore summarily stated lastly concluded hereinabove mentioned aforesaid said above noted previously aforementioned prior discussed earlier referred thereto heretofore hereinbefore recited described delineated detailed explicated elucidated enunciated articulated verbalized communicated conveyed transmitted imparted relayed reported declared announced proclaimed pronounced stated asserted affirmed attested testified sworn confirmed validated verified substantiated corroborated authenticated endorsed ratified sanctioned approved authorized certified licensed registered filed recorded documented archived catalogued indexed logged chronicled itemized enumerated listed tabulated charted graphed mapped plotted diagrammed sketched drawn illustrated depicted portrayed represented symbolized signified denoted indicated pointed out highlighted underscored emphasized accentuated stressed accentuated foregrounded spotlighted showcased featured headlined bannered trumpeted touted advertised promoted publicized broadcast telecast aired streamed webcast podcast vlogged blogged tweeted posted shared liked commented tagged pinned bookmarked saved favorited followed subscribed joined participated engaged interacted networked connected linked associated affiliated allied partnered collaborated cooperated coordinated synchronized harmonized integrated unified consolidated merged combined amalgamated fused blended mingled mixed intermingled intermixed intertwined interwoven entangled entwined knotted tied bound fastened attached affixed secured anchored moored lashed tethered hitched hooked clamped clipped clasped gripped grasp held seized grabbed snatched caught captured trapped ensnared ensnared enticed lured attracted charmed captivated enchanted mesmerized fascinated enthralled bewitched spellbound beguiled entranced hypnotized riveted engrossed immersed absorbed engross absorbed consumed preoccupied obsessed fixated infatuated smitten enamoured besotted lovestruck head-over-heels crazy about mad about nuts about wild about gaga over bananas over bonkers over cuckoo over crackers over dotty over potty over daft over loopy loony nutty barmy batty wacky zany screwy kooky quirky odd peculiar eccentric idiosyncratic unconventional unorthodox offbeat untypical atypical irregular abnormal unusual extraordinary remarkable exceptional singular unique distinctive special exclusive elite premier first-rate top-notch world-class state-of-the-art cutting-edge groundbreaking trailblazing pioneering revolutionary innovative inventive creative imaginative original novel fresh newfangled avant-garde progressive forward-thinking visionary futuristic leading-edge high-tech advanced sophisticated complex intricate elaborate refined polished sleek stylish chic elegant classy fashionable trendy hip cool happening now modern contemporary current present-day up-to-date recent latest newest most-recent brand-new spanking-new mint-condition pristine condition perfect condition excellent condition very good condition good condition fair condition poor condition bad condition terrible condition awful shape rough shape sorry state disrepair dilapidation decay ruin wreckage destruction devastation annihilation obliteration extermination extinction eradication elimination disappearance vanishing fading away dwindling shrinking declining waning weakening diminishing decreasing lessening reducing lowering dropping falling slipping sliding sinking plummeting plunging nosediving collapsing crumbling breaking down falling apart coming apart unraveling coming undone going wrong going south going belly-up going bust going bankrupt failing faltering floundering struggling suffering hurting languishing deteriorating degenerating degrading worsening exacerbating aggravating intensifying compounding multiplying escalating spiraling snowballing mushrooming ballooning burgeoning proliferating spreading increasing growing expanding enlarging swelling rising surging soaring skyrocketing shooting up rocketing zooming climbing ascending mounting building accumulating amassing collecting gathering hoarding stockpiling storing warehousing shelving stacking piling heaping mounding bundling clustering grouping assembling arranging organizing sorting categorizing classifying grading ranking rating evaluating assessing appraising judging estimating calculating computing figuring determining deciding choosing selecting picking opting electing nominating appoint designating assigning delegating entrusting empowering authorizing commissioning licensing certifying approving sanction endors permitting allowing enabling facilitating assisting aiding abetting helping supporting backing sponsoring funding financing investing endowing donating contributing giving gifting presenting awarding bestowing granting conferring offering extending furnishing supplying providing equipping outfitting arming fortifying reinforcing strengthening bolstering buttressing shoring propping sustaining maintaining preserving protecting safeguarding defending securing guarding shielding shelter covering concealing hiding camouflaging disguis masking cloaking veiling obscuring blurring cloud fog mist haze smoke vapor steam exhaust fumes gas emissions pollutants contaminants impurities toxins poisons chemicals substances materials elements compounds mixtures solutions suspensions emulsions colloids gels foams aerosols sprays droplets particles grains granules powders dusts sands soils clays silts muds sludges sediments residues wastes byproducts leftovers scraps remnants remainders fragments bits pieces parts components units modules sections segments portions fractions shares slices cuts chunks blocks slabs plates sheets layers coatings films membranes skins shells hulls casings housings frames structures skeletons frameworks scaffolds platforms bases foundations footings substructures superstructures infrastructures architectures designs blueprints plans layouts schemes models prototypes mockups samples trials tests experiments projects programs initiatives campaigns drives movements efforts endeavors undertakings enterprises ventures businesses companies corporations firms organizations associations societies clubs groups teams partnerships collaborations alliances coalitions networks federations unions leagues confederations consortiums syndicates cartels conglomerates combines mergers acquisitions takeovers buyouts buy-ins joint ventures franchises chains stores shops outlets branches subsidiaries divisions departments offices facilities plants factories mills workshops laboratories studios ateliers salons boutiques parlors galleries showrooms exhibitions displays fairs expos events happenings occasions gatherings meetings conferences conventions summits forums symposiums seminars lectures talks presentations speeches addresses orations sermons homilies discourses discussions debates dialogues conversations chats talks consultations negotiations mediations arbitrations settlements resolutions agreements contracts deals transactions trades exchanges swaps barters haggles bargains auctions bids tenders proposals offers suggestions recommendations advice tips hints clues pointers indicators guides directions instructions manuals handbooks textbooks workbooks notebooks journals diaries logs records reports memos notes messages emails letters correspondence communications notifications alerts warnings cautions advisories bulletins announcements proclamations declarations statements assertions claims allegations accusations charges indictments prosecutions lawsuits litigations cases trials hearings proceedings sessions sittings assemblies congregations councils committees boards panels juries tribunals courts benches bars chambers halls rooms buildings towers skyscrapers high-rises tenements apartments flats condos townhouses rowhouses brownstones mansions estates villas chateaus castles palaces fortresses citadels strongholds keeps bastions bulwarks ramparts parapets walls fences barriers barricades blockades obstacles hurdles impediments obstructions hindrances deterrents discouragement dissuasion persuasion coercion duress pressure force violence aggression hostility conflict confrontation clash fight battle war struggle contest competition rivalry race match game sport event tournament championship league series season round stage phase cycle period era age epoch time span interval duration moment instant second minute hour day week month year decade century millennium eternity infinity forever always evermore perpetually continually constantly incessantly ceaselessly endlessly tirelessly relentlessly unremittingly unwaveringly steadfastly resolutely firmly determined decisively conclusively finally ultimately eventually someday sometime sooner later never nowhere anywhere everywhere somewhere elsewhere here there near far close distant remote isolated secluded hidden concealed secret private confidential classified restricted limited exclusive selective chosen preferred favored privileged honored esteemed respected admired revered worshipped idolized adored cherished treasured valued appreciated acknowledged recognized celebrated commemorated remembered recalled recollected reminisced reflected ponder contemplated meditated mused rumin thought considered weighed measured calculated computed figured estimated gauged judged evaluated assessed appraised valued priced cost charged billed invoiced paid compensated rewarded remuner reimbursed refunded credited debited balanced settled cleared resolved finalized completed finished done accomplished achieved attained reached fulfilled realized actual material tangible concrete solid substantial physical corporeal bodily flesh blood bone muscle skin tissue organ system body mind soul spirit heart conscience consciousness subconscious unconscious psyche ego self identity personality character nature disposition temperament attitude outlook perspective viewpoint stance position opinion belief conviction principle value ethic moral virtue vice sin crime fault flaw defect imperfection blemish stain mark scar wound injury damage harm hurt pain suffering distress anguish agony misery torment torture trauma shock horror fear terror panic dread alarm fright worry anxiety concern apprehension unease discomfort dissatisfaction disappointment frustration irritation annoyance anger rage fury wrath hatred resentment bitterness spite malice animosity antipathy hostility enmity opposition resistance defiance rebellion revolt uprising insurrection mutiny coup d&amp;#39;etat revolution overthrow deposition abdication renunciation resignation retirement withdrawal retreat surrender capitulation submission subjugation oppression repression suppression persecution discrimination segregation apartheid racism sexism ageism ableism sizeism weightism lookism appearance-based prejudice bias bigotry intolerance narrow-mindedness small-mindedness shortsightedness ignorance stupidity foolishness idiocy lunacy madness insanity derangement craziness wildness recklessness carelessness negligence irresponsibility imprudence indiscretion rash impetuous impulsive spontaneous instinctive intuitive gut-feeling sixth-sense hunch inkling notion idea thought concept theory hypothesis speculation conjecture guess estimate calculation computation measurement evaluation assessment appraisal valuation price cost charge fee rate tariff duty tax levy toll fine penalty sanction punishment sentence verdict judgment decree order mandate command directive instruction rule regulation law statute ordinance act bill charter constitution treaty agreement pact accord alliance coalition partnership collaboration cooperation coordination synchronization harmonization integration unification consolidation merger acquisition takeover buyout buy-in joint venture franchise chain store shop outlet branch subsidiary division department office facility plant factory mill workshop laboratory studio atelier salon boutique parlor gallery showroom exhibition display fair expo event happening occasion gathering meeting conference convention summit forum symposium seminar lecture talk presentation speech address oration sermon homily discourse discussion debate dialogue conversation chat talk consultation negotiation mediation arbitration settlement resolution agreement contract deal transaction trade exchange swap barter haggle bargain auction bid tender proposal offer suggestion recommendation advice tip hint clue pointer indicator guide direction instruction manual handbook textbook workbook notebook journal diary log record report memo note message email letter correspondence communication notification alert warning caution advisory bulletin announcement proclamation declaration statement assertion claim allegation accusation charge indictment prosecution lawsuit litigation case trial hearing proceeding session sitting assembly congregation council committee board panel jury tribunal court bench bar chamber hall room building tower skyscraper high-rise tenement apartment flat condo townhouse rowhouse brownstone mansion estate villa chateau castle palace fortress citadel stronghold keep bastion bulwark rampart parapet wall fence barrier barricade blockade obstacle hurdle impediment obstruction hindrance deterrent discouragement dissuasion persuasion coercion duress pressure force violence aggression hostility conflict confrontation clash fight battle war struggle contest competition rivalry race match game sport event tournament championship league series season round stage phase cycle period era age epoch time span interval duration moment instant second minute hour day week month year decade century millennium eternity infinity forever always evermore perpetually continually constantly incessantly ceaselessly endlessly tirelessly relentlessly unremitting unwavering steadfast resolute firm determined decisive conclusive final ultimate eventual someday sometime sooner later never nowhere anywhere everywhere somewhere elsewhere here there near far close distant remote isolated secluded hidden concealed secret private confidential classified restricted limited exclusive selective chosen preferred favored privileged honored esteemed respected admired revered worshipped idolized adored cherished treasured valued appreciated acknowledged recognized celebrated commemoratively remembered recalled recollected reminisced reflected ponder contemplated meditated mused rumin thought considered weighed measured calculated computed figured estimated gauged judged evaluated assessed appraised valued priced cost charged billed invoiced paid compensated rewarded remuner reimbursed refunded credited debited balanced settled cleared resolved finalized completed finished done accomplished achieved attained reached fulfilled realized actual material tangible concrete solid substantial physical corporeal bodily flesh blood bone muscle skin tissue organ system body mind soul spirit heart conscience consciousness subconscious unconscious psyche ego self identity personality character nature disposition temperament attitude outlook perspective viewpoint stance position opinion belief conviction principle value ethic moral virtue vice sin crime fault flaw defect imperfection blemish stain mark scar wound injury damage harm hurt pain suffering distress anguish agony misery torment torture trauma shock horror fear terror panic dread alarm fright worry anxiety concern apprehension unease discomfort dissatisfaction disappointment frustration irritation annoyance anger rage fury wrath hatred resentment bitterness spite malice animosity antipathy hostility enmity opposition resistance defiance rebellion revolt uprising insurrection mutiny coup d&amp;#39;etat revolution overthrow deposition abdication renunciation resignation retirement withdrawal retreat surrender capitulation submission subjugation oppression repression suppression persecution discrimination segregation apartheid racism sexism ageism ableism sizeism weightism lookism appearance-based prejudice bias bigotry intolerance narrow-mindedness small-mindedness shortsightedness ignorance stupidity foolishness idiocy lunacy madness insanity derangement craziness wildness recklessness carelessness negligence irresponsibility imprudence indiscretion rash impetuous impulsive spontaneous instinctive intuitive gut-feeling sixth-sense hunch inkling notion idea thought concept theory hypothesis speculation conjecture guess estimate calculation computation measurement evaluation assessment appraisal valuation price cost charge fee rate tariff duty tax levy toll fine penalty sanction punishment sentence verdict judgment decree order mandate command directive instruction rule regulation law statute ordinance act bill charter constitution treaty agreement pact accord alliance coalition partnership collaboration cooperation coordination synchronization harmonization integration unification consolidation merger acquisition takeover buyout buy-in joint venture franchise chain store shop outlet branch subsidiary division department office facility plant factory mill workshop laboratory studio atelier salon boutique parlor gallery showroom exhibition display fair expo event happening occasion gathering meeting conference convention summit forum symposium seminar lecture talk presentation speech address oration sermon homily discourse discussion debate dialogue conversation chat talk consultation negotiation mediation arbitration settlement resolution agreement contract deal transaction trade exchange swap barter haggle bargain auction bid tender proposal offer suggestion recommendation advice tip hint clue pointer indicator guide direction instruction manual handbook textbook workbook notebook journal diary log record report memo note message email letter correspondence communication notification alert warning caution advisory bulletin announcement proclamation declaration statement assertion claim allegation accusation charge indictment prosecution lawsuit litigation case trial hearing proceeding session sitting assembly congregation council committee board panel jury tribunal court bench bar chamber hall room building tower skyscraper high-rise tenement apartment flat condo townhouse rowhouse brownstone mansion estate villa chateau castle palace fortress citadel stronghold keep bastion bulwark rampart parapet wall fence barrier barricade blockade obstacle hurdle impediment obstruction hindrance deterrent discouragement dissuasion persuasion coercion duress pressure force violence aggression hostility conflict confrontation clash fight battle war struggle contest competition rivalry race match game sport event tournament championship league series season round stage phase cycle period era age epoch time span interval duration moment instant second minute hour day week month year decade century millennium eternity infinity forever always evermore perpetually continually constantly incessantly ceaseless endless tireless relentless unwav resolve determination decision choice selection option election nomination appointment designation assignment delegation trust empowerment authorization commission license certification approval sanction endorsement permit allowance enablement facilitation assistance aid abetment help support backing sponsorship funding finance investment endowment donation contribution gift presentation award bestowal grant conferment offering extension furnishing supply provision equipment outfitting armament fortification reinforcement strength bolster buttress shore prop sustain maintenance preservation protection safeguard defense security guard shield shelter cover conceal hide camouflage disguise mask cloak veil obscure blur cloud fog mist haze smoke vapor steam exhaust fumes gas emissions pollutants contaminants impurities toxins poisons chemicals substances materials elements compounds mixtures solutions suspensions emulsions colloids gels foams aerosols sprays droplets particles grains granules powders dust sand soil clay silt mud sludge sediment residue waste byproduct leftover scrap remnant remainder fragment bit piece part component unit module section segment portion fraction share slice cut chunk block slab plate sheet layer coating film membrane skin shell hull casing housing frame structure skeleton framework scaffold platform base foundation footing substructure superstructure infrastructure architecture design blueprint plan layout scheme model prototype mockup sample trial test experiment project program initiative campaign drive movement effort endeavor undertaking enterprise venture business company corporation firm organization association society club group team partnership collaboration alliance coalition network federation union league confederation consortium syndicate cartel conglomerate combine merger acquisition takeover buyout buy-in joint venture franchise chain store shop outlet branch subsidiary division department office facility plant factory mill workshop laboratory studio atelier salon boutique parlor gallery showroom exhibition display fair expo event happening occasion gathering meeting conference convention summit forum symposium seminar lecture talk presentation speech address oration sermon homily discourse discussion debate dialogue conversation chat talk consultation negotiation mediation arbitration settlement resolution agreement contract deal transaction trade exchange swap barter haggle bargain auction bid tender proposal offer suggestion recommendation advice tip hint clue pointer indicator guide direction instruction manual handbook textbook workbook notebook journal diary log record report memo note message email letter correspondence communication notification alert warning caution advisory bulletin announcement proclamation declaration statement assertion claim allegation accusation charge indictment prosecution lawsuit litigation case trial hearing proceeding session sitting assembly congregation council committee board panel jury tribunal court bench bar chamber hall room building tower skyscraper high-rise tenement apartment flat condo townhouse rowhouse brownstone mansion estate villa chateau castle palace fortress citadel stronghold keep bastion bulwark rampart parapet wall fence barrier barricade blockade obstacle hurdle impediment obstruction hindrance deterrent discouragement dissuasion persuasion coercion duress pressure force violence aggression hostility conflict confrontation clash fight battle war struggle contest competition rivalry race match game sport event tournament championship league series season round stage phase cycle period era age epoch time span interval duration moment instant second minute hour day week month year decade century millennium eternity infinity forever always evermore perpetually continually constantly incessantly ceaseless endless tireless relentless unwav resolve determination decision choice selection option election nomination appointment designation assignment delegation trust empowerment authorization commission license certification approval sanction endorsement permit allowance enablement facilitation assistance aid abetment help support backing sponsorship funding finance investment endowment donation contribution gift presentation award bestowal grant conferment offering extension furnishing supply provision equipment outfitting armament fortification reinforcement strength bolster buttress shore prop sustain maintenance preservation protection safeguard defense security guard shield shelter cover conceal hide camouflage disguise mask cloak veil obscure blur cloud fog mist haze smoke vapor steam exhaust fumes gas emissions pollutants contaminants impurities toxins poisons chemicals substances materials elements compounds mixtures solutions suspensions emulsions colloids gels foams aerosols sprays droplets particles grains granules powders dust sand soil clay silt mud sludge sediment residue waste byproduct leftover scrap remnant remainder fragment bit piece part component unit module section segment portion fraction share slice cut chunk block slab plate sheet layer coating film membrane skin shell hull casing housing frame structure skeleton framework scaffold platform base foundation footing substructure superstructure infrastructure architecture design blueprint plan layout scheme model prototype mockup sample trial test experiment project program initiative campaign drive movement effort endeavor undertaking enterprise venture business company corporation firm organization association society club group team partnership collaboration alliance coalition network federation union league confederation consortium syndicate cartel conglomerate combine merger acquisition takeover buyout buy-in joint venture franchise chain store shop outlet branch subsidiary division department office facility plant factory mill workshop laboratory studio atelier salon boutique parlor gallery showroom exhibition display fair expo event happening occasion gathering meeting conference convention summit forum symposium seminar lecture talk presentation speech address oration sermon homily discourse discussion debate dialogue conversation chat talk consultation negotiation mediation arbitration settlement resolution agreement contract deal transaction trade exchange swap barter haggle bargain auction bid tender proposal offer suggestion recommendation advice tip hint clue pointer indicator guide direction instruction manual handbook textbook workbook notebook journal diary log record report memo note message email letter correspondence communication notification alert warning caution advisory bulletin announcement proclamation declaration statement assertion claim allegation accusation charge indictment prosecution lawsuit litigation case trial hearing proceeding session sitting assembly congregation council committee board panel jury tribunal court bench bar chamber hall room building tower skyscraper high-rise tenement apartment flat condo townhouse rowhouse brownstone mansion estate villa chateau castle palace fortress citadel stronghold keep bastion bulwark rampart parapet wall fence barrier barricade blockade obstacle hurdle impediment obstruction hindrance deterrent discouragement dissuasion persuasion coercion duress pressure force violence aggression hostility conflict confrontation clash fight battle war struggle contest competition rivalry race match game sport event tournament championship league series season round stage phase cycle period era age epoch time span interval duration moment instant second minute hour day week month year decade century millennium eternity infinity forever always evermore perpetually continually constantly incessantly ceaseless endless tireless relentless unwav resolve determination decision choice selection option election nomination appointment designation assignment delegation trust empowerment authorization commission license certification approval sanction endorsement permit allowance enablement facilitation assistance aid abetment help support backing sponsorship funding finance investment endowment donation contribution gift presentation award bestowal grant conferment offering extension furnishing supply provision equipment outfitting armament fortification reinforcement strength bolster buttress shore prop sustain maintenance preservation protection safeguard defense security guard shield shelter cover conceal hide camouflage disguise mask cloak veil obscure blur cloud fog mist haze smoke vapor steam exhaust fumes gas emissions pollutants contaminants impurities toxins poisons chemicals substances materials elements compounds mixtures solutions suspensions emulsions colloids gels foams aerosols sprays droplets particles grains granules powders dust sand soil clay silt mud sludge sediment residue waste byproduct leftover scrap remnant remainder fragment bit piece part component unit module section segment portion fraction share slice cut chunk block slab plate sheet layer coating film membrane skin shell hull casing housing frame structure skeleton framework scaffold platform base foundation footing substructure superstructure infrastructure architecture design blueprint plan layout scheme model prototype mockup sample trial test experiment project program initiative campaign drive movement effort endeavor undertaking enterprise venture business company corporation firm organization association society club group team partnership collaboration alliance coalition network federation union league confederation consortium syndicate cartel conglomerate combine merger acquisition takeover buyoutbuyinjointventurefranchisechainstoreashopbranchsubsidiarydivisiondepartmentofficefacilityplantfactorymillworkshoplaboratorystudioateliersalonboutiqueparlorgalleryshowroomexhibitiondisplayfairexpoeventhappeningoccasiongathermeetingconferenceconventionsummitforumsymposiumseminarlecturetalkpresentaddressorationsermonhomilydiscoursdebateleconversationchatconsultnegotiatemediationarbitrsettleresolutionagrecontractdealtransactexchangebarterhagglebargainauctionbidtenderpropossuggestrecommendadvicethintcluepointerindicguiddirectionmanualhandbooktextworknotebookjournlogrecordmemoemaillettercorrespondencenotificationalertwarncautionbulletinannounceproclamstatementassertclaimaccusechargelawsuitlitigtrialhearproceedsessionassemblycommitteejurtribunalcourtbenchchamberbuildingtowerhighrisetenemapartmentcondotownrowbrownestatemansionvillachateaustrongkeepbulwarampawallfenceblockobstacleimpeddeterdiscourpersuaduresspressviolaggresshostilconflictbattlewarstrugcompetmatchsportchampionshipleagueseriesseasonphasecycleperiodepochspanduratinstantsecondminutehourdayweekmonthyeardecamilforeverperpetualconstancelessrelentunwavdeterminselectelecti</p>
