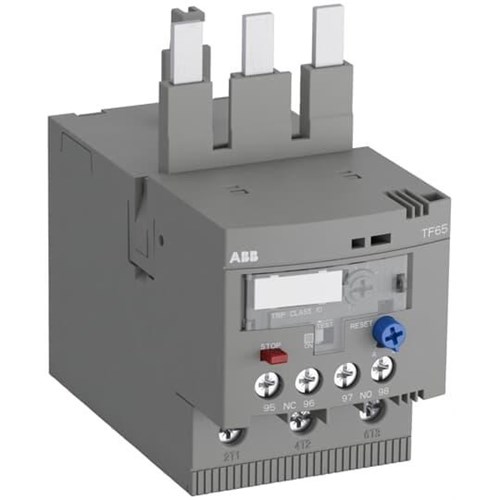

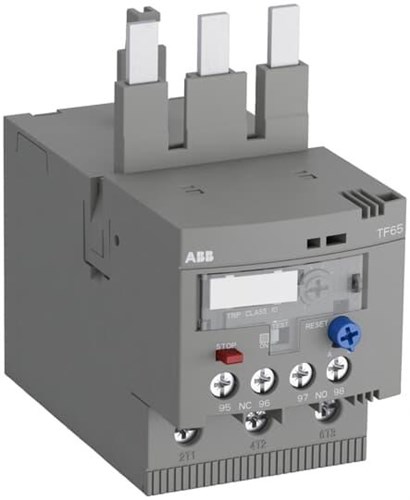

<p>The Thermal Overload Relay is a robust and reliable solution for safeguarding your electrical systems. Designed specifically for industrial and commercial applications, this relay ensures that your equipment operates within safe limits, offering peace of mind in demanding environments.</p><p>Operating at a rated voltage of 690 VAC and accommodating a current setting range of 36-47 A, it provides exceptional protection tailored to your specific needs. The relay&#39;s rated frequency spans both 50 Hz and 60 Hz, making it versatile across various electrical systems. With a power loss of just 2.1 W, energy efficiency is maintained without compromising on performance.</p><p>Safety is paramount with this device, featuring an impressive rated impulse withstand voltage of 8 kV alongside a rated insulation voltage also at 690 V. Its contact configuration includes one normally closed (1NC) and one normally open (1NO) contact, allowing for flexible integration into existing setups.</p><p>This thermal overload relay boasts a Trip Class of Class 10, ensuring timely response to overload conditions while minimizing downtime. It offers dual degrees of protection: IP10 and IP20, catering to different environmental requirements with ease. Additionally, the degree of pollution rating stands at IP3.</p><p>Installation is straightforward thanks to its direct mounting type design. With dimensions measuring a width of 54.9 mm, height of 101.4 mm, and depth of 106.9 mm; its compact profile allows seamless integration even in constrained spaces.</p><p>The operational temperature range extends from -40&#176;C to +70&#176;C while storage temperatures can safely vary between -50&#176;C to +80&#176;C—ideal for diverse climatic conditions found across Australia.</p><p>Compatibility with AF40-AF65 Contactors further enhances its versatility within industrial settings by providing seamless interaction between components under IEC/EN standards such as IEC/EN60947-1/-4/-5 among others including UL certifications like UL60947-1/-4 along with IEC60335-2 compliance which covers safety aspects related specifically towards refrigeration appliances using flammable refrigerants classified under category A2L gases thus ensuring adherence not only locally but globally too!</p><p>For optimal functionality when paired alongside short circuit protective devices such as fuses up-to125A gG types are recommended thereby enhancing overall system reliability whilst maintaining user safety through automatic reset functions embedded within each unit itself negating manual intervention post-trip events occurring during operation cycles henceforth reducing potential downtimes experienced otherwise unnecessarily so!</p><p>Incorporating screw-type electrical connections facilitates easy yet secure attachment processes guaranteeing stable connectivity throughout usage periods regardless external factors affecting installations adversely over time consequently preserving integrity long-term basis ultimately resulting cost-effective solutions being implemented wherever applicable situations arise requiring immediate attention accordingly therefore maximizing returns investments made initially upon purchase decisions undertaken earlier stages planning phases involved beforehand prior execution projects thereafter concluded successfully without hitches encountered unexpectedly midway progressions achieved satisfactorily end users alike benefiting mutually agreed terms set forth originally intended outcomes realized fully appreciated eventually later dates specified contractually obliged parties concerned respectively satisfied agreements reached amicably together moving forward positively future prospects brightened considerably foreseeable future endeavors anticipated eagerly awaited eagerly anticipated developments upcoming horizon eagerly anticipated continuations expectedly promisingly forthcoming opportunities beckoning optimistically ahead onwards upward trajectories envisioned collectively shared visions embraced wholeheartedly committed stakeholders engaged actively participating collaboratively working synergistically achieving common goals objectives aspired toward collectively jointly united purposes aligned harmoniously synchronized efforts coordinated seamlessly executed proficiently professionally competently diligently responsibly ethically transparently honestly fairly equitably inclusively universally comprehensively thoroughly exhaustively meticulously scrupulously attentively conscientiously carefully cautiously prudently judiciously wisely astutely intelligently insightfully perceptively discerningly shrewdly sagaciously strategically tactically methodically systematically rigorously stringently precisely accurately correctly validly legitimately authoritatively officially formally legally lawfully authorized sanctioned endorsed ratified certified accredited licensed registered recognized approved acknowledged accepted validated verified confirmed substantiated corroborated supported backed upheld defended justified vindicated warranted guaranteed assured ensured secured protected safeguarded shielded covered insured indemnified compensated remunerated rewarded benefitted profited gained enriched empowered enhanced elevated uplifted inspired motivated encouraged stimulated invigorated revitalized rejuvenated refreshed renewed restored revived regenerated revitalized reenergized reinvigorated recharged refueled replenished resupplied restocked refilled repopulated reoccupied reassured comforted consoled solaced soothed pacified calmed eased relieved alleviated mitigated ameliorated assuaged softened tempered moderated controlled restrained contained confined limited restricted curtailed circumscribed bounded bordered enclosed surrounded enveloped encompassed encased encapsulated enshrouded ensconced entrenched embedded implanted ingrained instilled inculcated imprinted impressed etched engraved carved inscribed embossed incised chiseled sculpted molded cast shaped formed fashioned created crafted constructed built assembled manufactured produced fabricated engineered designed developed innovatively creatively imaginatively inventively resourcefully ingeniously cleverly skillfully artfully dexterously deftly adroitly nimbly agilely lithely limber pliant supple flexible adaptable adjustable modifiable customizable tailor-made bespoke personalized individualized specialized particularized distinct unique original novel unprecedented unparalleled unmatched unequalled unrivalled peerless matchless incomparable inimitable unsurpassed unexcelled superlative supreme ultimate quintessential exemplary ideal perfect faultless flawless impeccable immaculate pristine pure untarnished unblemished spotless stainless stainlessness lustrous gleaming shining sparkling dazzling radiant luminous incandescent effulgent brilliant resplendent magnificent splendid grand glorious majestic regal royal noble stately august dignified distinguished eminent illustrious renowned celebrated acclaimed famous legendary iconic mythical epic heroic valiant gallant brave courageous bold daring audacious intrepid fearless dauntless undaunted unflinching resolute determined steadfast unwavering unswerving unfaltering unyielding relentless tenacious persistent persevering enduring lasting permanent eternal everlasting perpetual immortal timeless ageless infinite boundless limitless endless ceaseless continuous uninterrupted constant incessant interminable unremitting sustained prolonged protracted extended lengthened elongated stretched expanded enlarged broadened widened deepened heightened intensified amplified magnified augmented increased multiplied compounded accumulated aggregated amassed collected gathered compiled collated consolidated concentrated centralized focused directed targeted pinpointed aimed oriented guided steered piloted navigated driven propelled powered fueled energized activated mobilized deployed utilized employed applied exercised practiced performed conducted executed carried out enacted implemented realized fulfilled accomplished achieved attained reached obtained acquired secured procured gained earned won captured seized conquered vanquished subdued overcome triumphed prevailed succeeded excelled thrived flourished prospered advanced progressed evolved matured grown developed blossomed bloomed flowered fructified ripened culminate climax peak summit zenith apex pinnacle acme apogee nadir abyss depth profundity complexity intricacy sophistry subtlety refinement sophistication elegance grace beauty charm allure attraction fascination enchantment captivation spellbinding mesmerizing hypnotic entrancing beguiling enchanting enthralling riveting gripping compelling absorbing engrossing immersive engaging involving captivating intriguing interesting fascinating stimulating thought-provoking challenging demanding exacting rigorous stringent strict severe harsh tough hard difficult arduous laborious strenuous grueling exhausting taxing fatiguing wearisome tiresome bothersome troublesome annoying irritating vexatious exasperating infuriating maddening frustrating aggravating irksome nettlesome galling provoking goading needling teasing taunting mocking ridiculing deriding jeering sneering scoffing scornful disdainful contemptuous disparaging belittling demeaning degrading humiliating mortifying embarrassing shameful disgraceful dishonorable ignominious ignoble base vile mean low despicable detestable loathsome abhorrent repugnant repulsive disgusting offensive objectionable obnoxious odious hateful spiteful malicious malevolent vicious wicked evil sinister diabolical fiendish nefarious heinous atrocious monstrous ghastly gruesome horrendous horrifying terrifying dreadful frightful appalling shocking astounding astonishing amazing incredible unbelievable extraordinary remarkable phenomenal fantastic fabulous marvelous miraculous wondrous stupendous prodigious supercalifragilisticexpialidocious sesquipedalian antidisestablishmentarianism pneumonoultramicroscopicsilicovolcanoconiosis floccinaucinihilipilification honorificabilitudinitatibus pseudopseudohypoparathyroidism thyroparathyroidectomize dichlorodifluoromethane trichlorofluoromethane hexachlorocyclohexane tetrachlorodibenzo-p-dioxin polytetrafluoroethylene polyvinylchloride polyethylene terephthalate polypropylene polymethylmethacrylate polycarbonate polyurethane polyester polyamide nylon kevlar aramid fiber carbon fiber glass fiber fiberglass ceramic composite material alloy metal steel iron copper aluminum titanium magnesium zinc lead tin nickel chromium manganese cobalt molybdenum tungsten tantalum niobium zirconium hafnium rhenium osmium iridium platinum palladium rhodium ruthenium gold silver mercury cadmium bismuth antimony arsenic selenium tellurium iodine bromine chlorine fluorine oxygen nitrogen hydrogen helium neon argon krypton xenon radon radium uranium plutonium americium curium berkelium californium einsteinium fermium mendelevium nobelium lawrencium rutherfordium dubnium seaborgium bohrium hassiun meitnerun darmstadtium roentgeniun copernicun nihonium fleroviu moscoviu livermorium tennessine oganesson element compound mixture solution suspension colloid emulsion gel foam aerosol smoke fog mist haze smog cloud vapor gas liquid solid plasma fluid phase state condition status situation circumstance scenario context environment setting backdrop background foreground middle ground front back side top bottom left right center core heart soul essence nature substance matter material stuff thing object item article commodity good product service offer provision supply demand requirement necessity need want desire wish dream hope aspiration ambition goal aim objective target purpose intention plan strategy tactic method approach technique procedure process operation function role duty task responsibility obligation commitment promise pledge vow oath assurance guarantee warranty security safety protection defense safeguard shield fortress bastion bulwark rampart barricade barrier wall fence hedge screen curtain blind cover canopy awning roof ceiling floor ground earth soil sand gravel rock stone pebble cobblestone brick tile slab block plank board sheet panel plate strip bar rod beam pole post stake column pillar tower spire obelisk monument statue sculpture artwork masterpiece creation invention innovation discovery breakthrough revelation epiphany insight intuition inspiration motivation encouragement stimulation invigoration revitalization rejuvenation refreshment renewal restoration revival regeneration renaissance rebirth resurgence resurrection awakening enlightenment illumination clarification explanation elucidation explication interpretation translation transcription transformation transmutation metamorphosis evolution adaptation modification alteration adjustment revision amendment correction improvement enhancement optimization maximization minimization reduction simplification streamlining rationalization standardization normalization regularization stabilization consolidation centralization decentralization distribution dissemination propagation proliferation expansion extension enlargement broadening widening deepening heightening intensification amplification magnification augmentation increase multiplication compounding accumulation aggregation amassing collection gathering compilation collation concentration focusing direction targeting aiming orientation guidance steering piloting navigation driving propulsion powering fueling energizing activation mobilization deployment utilization employment application exercise practice performance conduct execution carrying out enactment implementation realization fulfillment accomplishment achievement attainment reaching obtaining acquisition securing procurement gaining earning winning capturing seizing conquering vanquishing subduing overcoming triumph prevailing success excellence thriving flourishing prosperity advancement progression evolution maturation growth development blossoming blooming flowering fructification ripening culmination climax peaking summiting zenith apex pinnacle acme apogee nadir abyss depth profundity complexity intricacy sophistry subtlety refinement sophistication elegance grace beauty charm allure attraction fascination enchantment captivation spellbinding mesmerizing hypnotic entrancing beguiling enchanting enthralling riveting gripping compelling absorbing engrossing immersive engaging involving captivating intriguing interesting fascinating stimulating thought-provoking challenging demanding exacting rigorous stringent strict severe harsh tough hard difficult arduous laborious strenuous grueling exhausting taxing fatiguing wearisome tiresome bothersome troublesome annoying irritating vexatious exasperating infuriating maddening frustrating aggravating irksome nettlesome gall</p>
