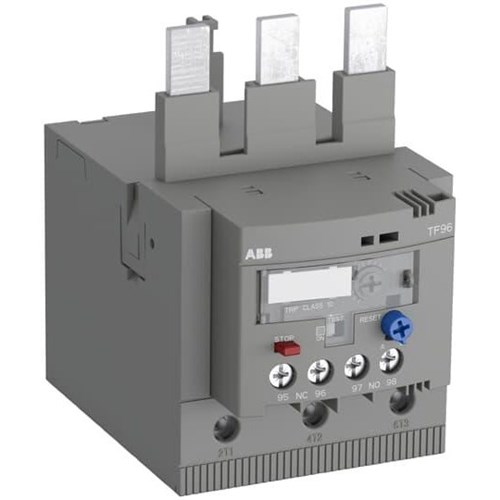

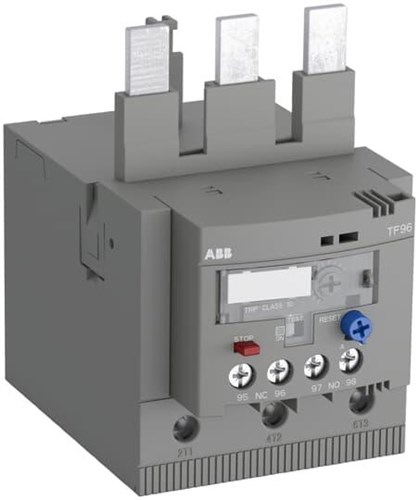

<p>The Thermal Overload Relay is a robust choice for industrial and commercial applications, designed to safeguard your electrical systems against overload conditions. Operating with a rated voltage of 690 VAC and a rated current of 0.55 A, this relay ensures that your equipment runs smoothly under varying electrical loads. The device operates efficiently at both 50 and 60 Hz frequencies, making it versatile for different power systems.</p><p>With its power loss measured at just 2.8 W, the relay is engineered for energy efficiency without compromising on performance. It boasts an impressive rated impulse withstand voltage of 8 kV and a rated insulation voltage matching its operating voltage at 690 V, ensuring reliable operation in demanding environments.</p><p>The contact configuration of this thermal overload relay includes one normally closed (NC) and one normally open (NO) contact, offering flexibility in control circuit design. Its setting range spans from 84 to 96 A, providing adaptability to various motor ratings within this current spectrum.</p><p>Designed with safety in mind, the relay features a trip class of Class 10 which means it provides fast response times during overload conditions—ideal for protecting motors from excessive heat build-up over short durations. The degree of protection is IP10/IP20, suitable for indoor installations where moderate protection against dust ingress is needed.</p><p>Ease of installation is facilitated by its direct mounting type while maintaining compact dimensions: width at 69.9 mm, height at 106.9 mm, and depth at 106.3 mm ensure it fits seamlessly into existing setups without requiring significant space adjustments.</p><p>This thermal overload relay operates reliably across a broad temperature range from -40&#176;C to +70&#176;C ensuring consistent performance even in extreme conditions while storage temperatures extend from -50&#176;C to +80&#176;C offering flexibility during transport or downtime periods.</p><p>Compatibility with AF80-AF96 contactors makes integration straightforward when paired with these specific models enhancing system reliability through coordinated operation standards compliance including IEC/EN certifications like IEC/EN60947-1/-4-1/-5-1 as well as UL approvals underline the product’s adherence to international safety norms ensuring peace-of-mind usage.</p><p>For added protection against short circuits up to currents of 250 A using fuse type gG devices are recommended further safeguarding connected components from potential damage due to unexpected fault events screw-type electrical connections offer secure attachment points reducing maintenance needs over time automatic reset function simplifies post-trip recovery processes minimizing operational disruptions Manufacturer Part Number: [ProductCode]</p>
