Specifications

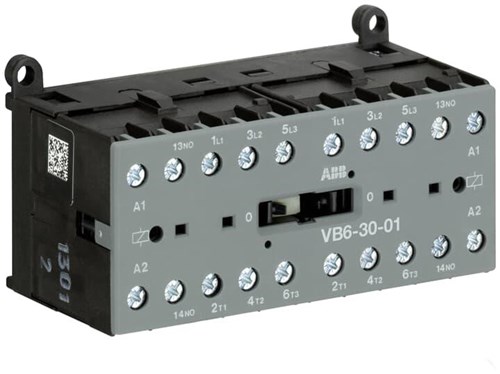

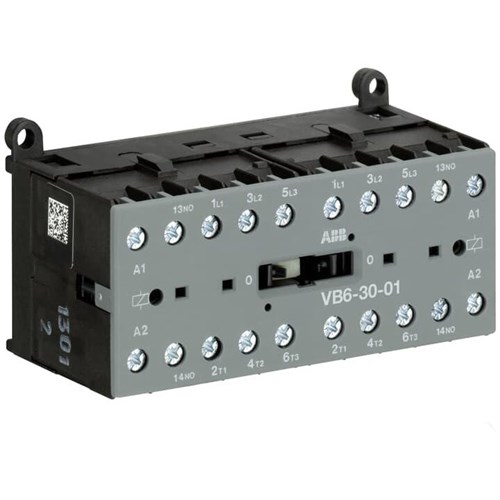

Product Type	Mini Contactors
Brand	ABB
No. of Auxiliary Contacts	0 NO / 1 NC
Rated Control Supply Voltage (Us)	24 V AC
Rated Operational Current AC-1 <= 440V (Ie)	20 A
Rated Operational Current AC-1 <= 690V (Ie)	0.25
Rated Operational Current AC-3 400V (Ie)	0.375
Rated Operational Current AC-3 690V (Ie)	3.5 A
Rated Operational Power AC-3 400V (Pe)	4 kW
Rated Operational Power AC-3 690V (Pe)	3 kW
Rated Frequency	50/60 Hz
No. of Poles	3P
Depth	46.7 mm
Height	57.5 mm
Weight	0.355 kg
Width	96.2 mm
Ambient Temperatures	-20 ... +55 °C
Standards and Approvals	IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1IEC 60335-2-40 (A2L applications)
