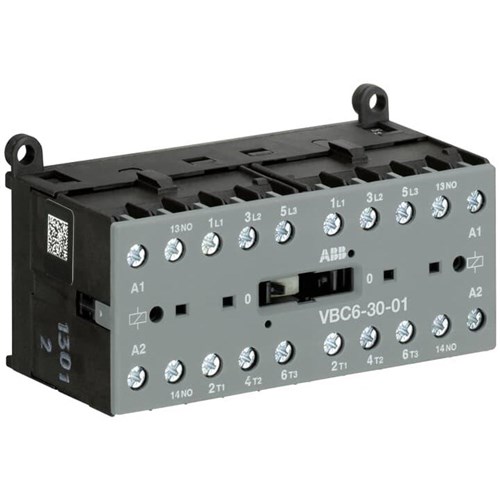

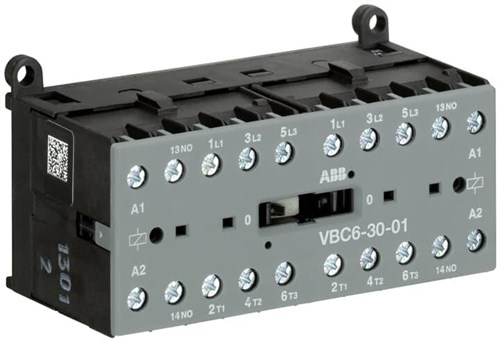

<p>When it comes to reliable and efficient control solutions in industrial and commercial applications, this Mini Contactor stands out as a robust choice. Designed for versatility, it operates with a rated voltage of 24 VAC and is capable of handling a rated current of 6 A. Its adaptability to both 50 Hz and 60 Hz frequencies makes it suitable for various environments.</p><p>This contactor boasts an impressive power loss rating of just 2 W, ensuring energy efficiency without compromising performance. The rated impulse withstand voltage is set at 6 kV, providing resilience against transient overvoltages. With a high-rated insulation voltage of 690 V, the device ensures safety and durability across its operational lifespan.</p><p>The contact configuration includes one normally closed (1NC) and three normally open (3NO) contacts, allowing for flexible integration into different control circuits. Connections are made easy with screw terminals that ensure secure electrical connections.</p><p>In terms of protection, the Mini Contactor features an IP20 degree of protection against solid objects larger than 12 mm. It also meets the IP3 degree of pollution standard, making it suitable for use in environments where dust or other non-conductive pollutants are present.</p><p>Installation is straightforward with rail mounting capabilities that simplify setup within control panels or enclosures. Measuring at a width of 96.2 mm, height of 57.5 mm, and depth of 46.7 mm, this compact design allows for space-efficient installation without sacrificing functionality.</p><p>The operational temperature range from -20 to +55 degrees Celsius ensures reliable performance in diverse climates and conditions. Compliance with standards such as IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 along with UL approvals underscores its quality assurance and suitability for international markets.</p><p>Rated at a power capacity of up to 4 kW when actuated by DC voltage type further highlights its capability in managing substantial loads effectively within small-scale applications or auxiliary functions in larger systems.</p><p>Overall this Mini Contactor offers an excellent balance between size efficiency reliability making it an ideal component choice for engineers seeking dependable performance under varying operational demands while adhering to rigorous safety standards.</p>
